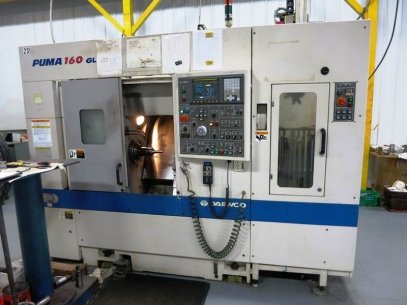

DAEWOO PUMA 160 GT 2-AXIS CNC GANT TYPE TURNING CENTER WITH GANTRY ROBOT LOADER AND PARTS STOCKER
NEW 2002

DAEWOO PUMA 160 GT 2-AXIS CNC GANT TYPE TURNING CENTER WITH
GANTRY ROBOT LOADER AND PARTS STOCKER

SERIAL NUMBER PL160 0018 NEW 2002

GENERAL SPECIFICATIONS:

Swing over bed 19.7"
Swing over carriage 6.5" Travels
X-Axis 15.7"
Y-Axis 9.8"
Rapid Traverse Rates Z/X 1200 ipm/1400 ipm
Spindle speeds 6,000 RPM
Bore 2.08"
Draw Tube 1.81"
Motor 15 HP
Gang Slide Table 21.7"x7.9"
Chuck Capacity 6"

EQUIPPED WITH:
Fanuc Oi-T CNC Control
Collet Chuck 5C Type Collets
Gang type 2-Axis slide
Gantry Robotic Loader
Parts Stocker
Chip Conveyor
