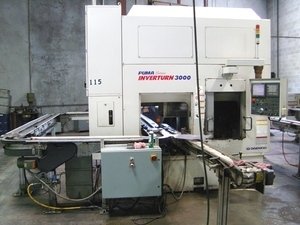

Inverted Spindle Design, Part Load / Unload Conveyor, 12" Hydraulic Chuck, Chip Conveyor, Three Color Tower Light
Specifications:
Chuck Size 12"
Max Swing Over Bed 15.7"
Max Turning Diameter 12.6"
Max Machining Length 7.9"
Max Workpiece Weight with Chuck 220 lbs.
Spindle Motor 30 / 20 HP
Spindle Speed 50 - 3300 RPM
Spindle Nose A2-8
Spindle Torque 516 ft. lbs.
Tools 12
Rapid Traverse Rates (X / Z) 1800 / 1200 IPM
X-Axis Travel 49.2"
Z-Axis Travel 14.17"
Part Load Time 8 Seconds
Turret Index (Single Step) 0.1 Seconds
Machine Dimensions (L x W x H) 114.9" x 79.7" x 116.5"
Machine Weight 19,845 lbs.
FEATURES:
FANUC 18iTB CNC CONTROL
Inverted Spindle Design
Part Load / Unload Conveyor
12" Hydraulic Chuck
Chip Conveyor
Three Color Tower Light
