Deflection on bed: 38"
Bed width x height: 30" x 28"
Shape of main spindle end: JIS A2-15
Spindle speed: 6 - 1150 rpm
Diameter of main spindle front bearing: 132"
Diameter of main spindle rear bearing: 121"
Diameter of main spindle through hole: 9.6"
Diameter of tailstock spindle: 25"
Size of center: MT No. 6
Width of cross slide 15.2"
Diameter of X axis ball screw: 1.6"
Maximum travel distance of tailstock spindle: 7.2"
Distance between centers: 80"
Whole distance of bed: 178"
Maximum travel distance of Z axis: 80"
Diameter of Z axis ball screw: 6"
Maximum travel distance of X axis: 16"
Tool positions: 8
Equipped with:

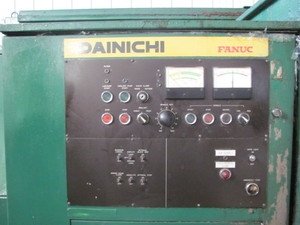

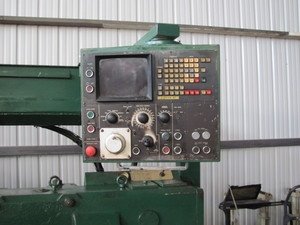

Fanuc 6T control
Chip conveyor

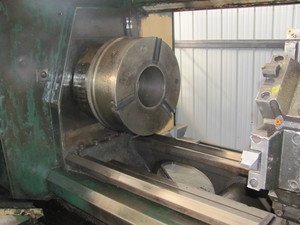

24" Hydraulic chuck
Steady Rest
Misc OD & ID tooling
