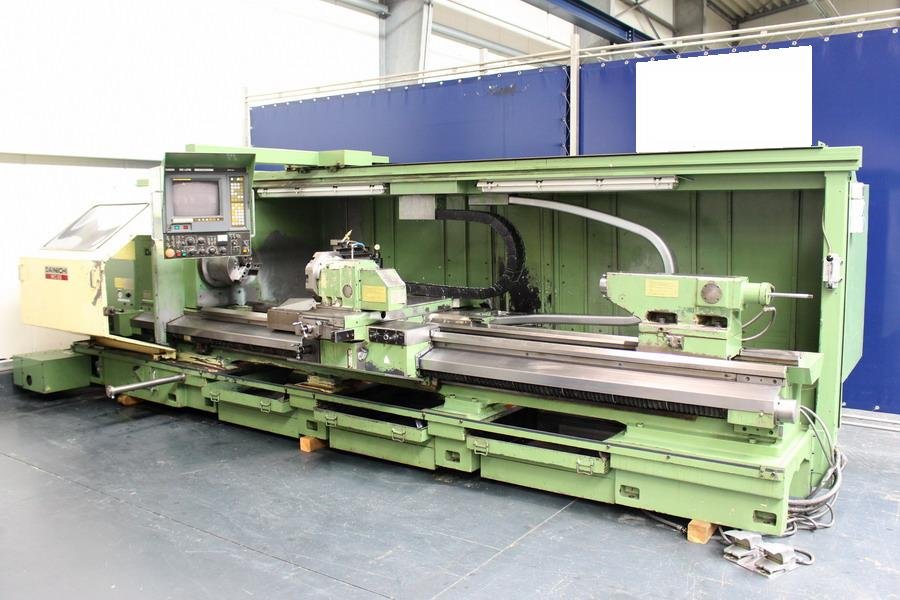

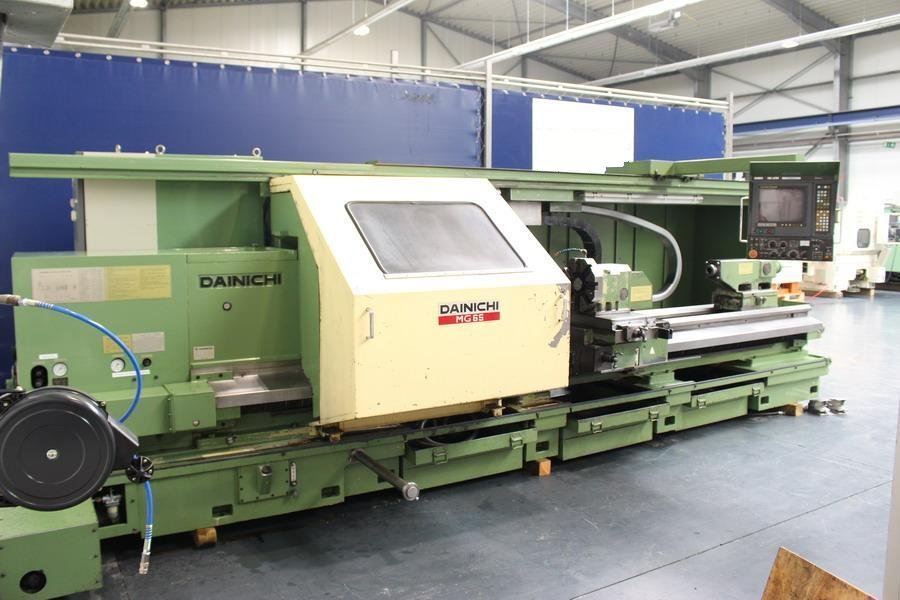

CNC lathe DAINICHI MG 65 / 3000 made in Japan in 1989.
Specifications:
Control: Fanuc 15-T
Turning diameter: 360 mm
Turning length: 2500 mm
Turning diameter over bed: 630 mm
Bed width: 480 mm
Main spindle:
-Turning speed range: 3-1800 min/-1
-Transmission ratio: 3
-Power capacity: 11 / 15 kW
-Max. torque: 1060 Nm
-Spindle nose: JIS A-11
-Spindle diameter in front bearing: 140 mm
-Spindle cone: No. 100
-Spindle bore: 85 mm
Axis stroke:
-X-travel: max. 320 mm
-Z-travel: max. 3000 mm

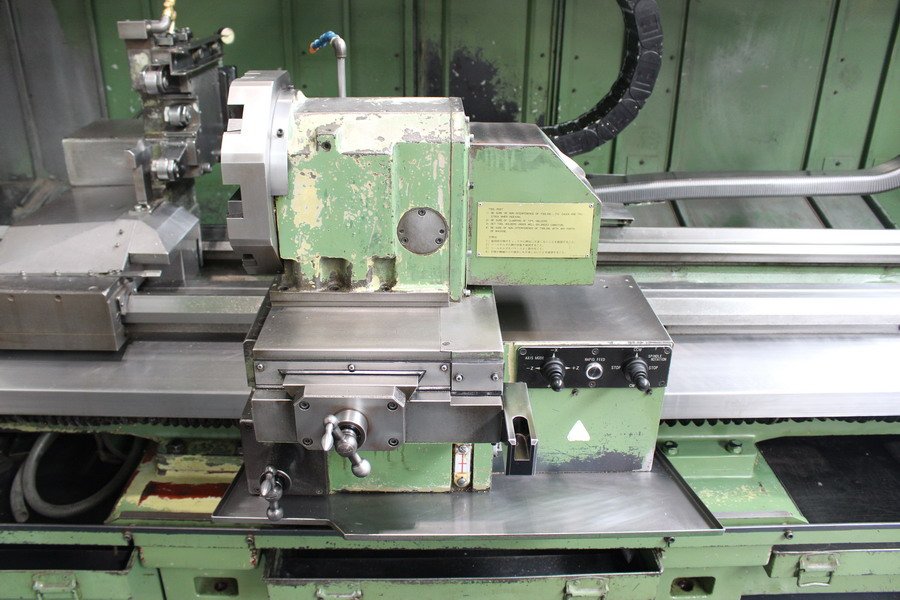

Turret:
-Number of tool positions: 8
Shank diameter: 25 x 25 mm
Tailstock:
-Tailstock adjustment: 150 mm
-Taper of center: MK 5
-Diameter of quill: 90 mm
-Tension force: 10 kN
Max. work-piece weight between centers: 1600 kg
Feeds:
-Rapid traverse: 6000 mm/min
-Feed speeds: 0,0001-500,0000 mm/min
Total power requirement: 33 kVA
Equipment:
Documents
Coolant system
Tailstock
Hydraulic system

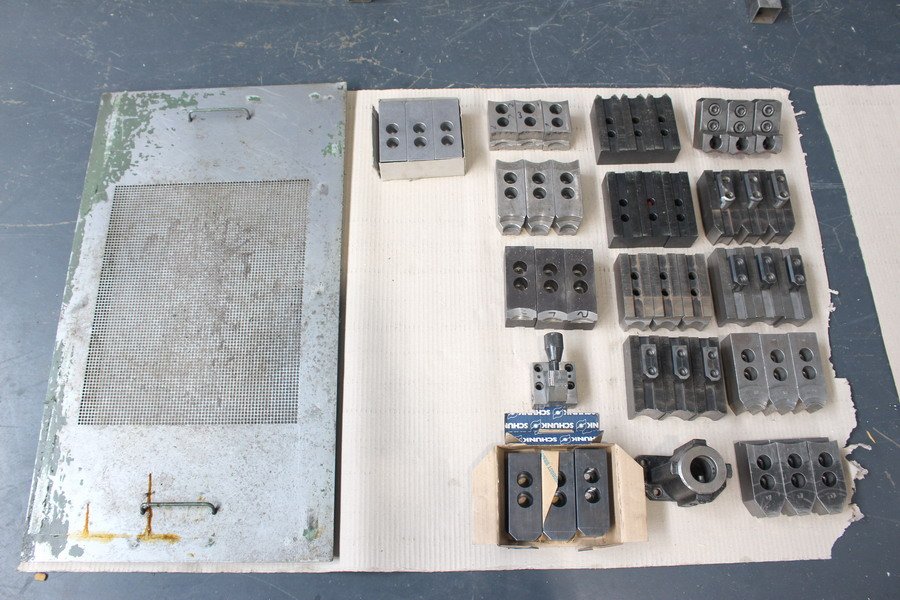

Three Jaw Chuck Kitagawa B-12 8250

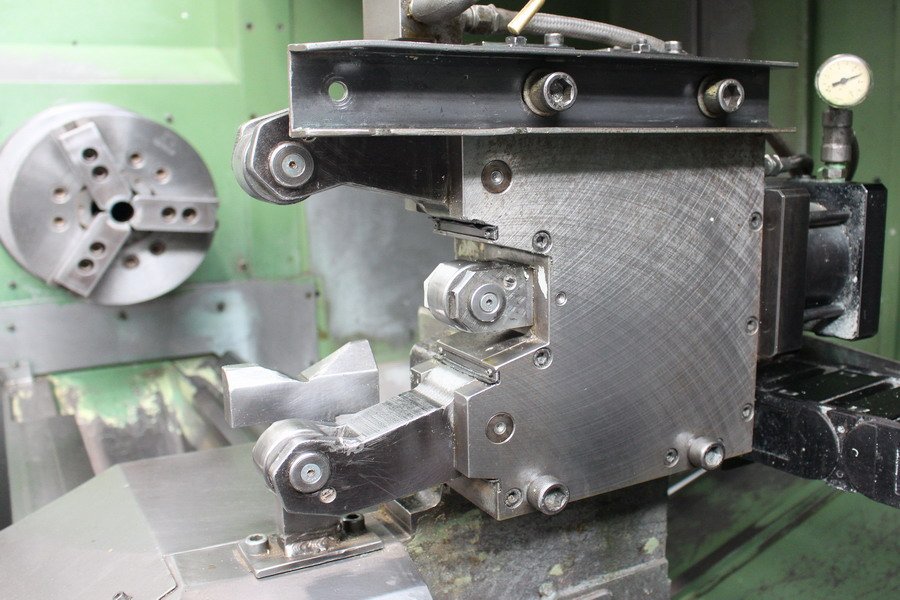

Turret 8 pos

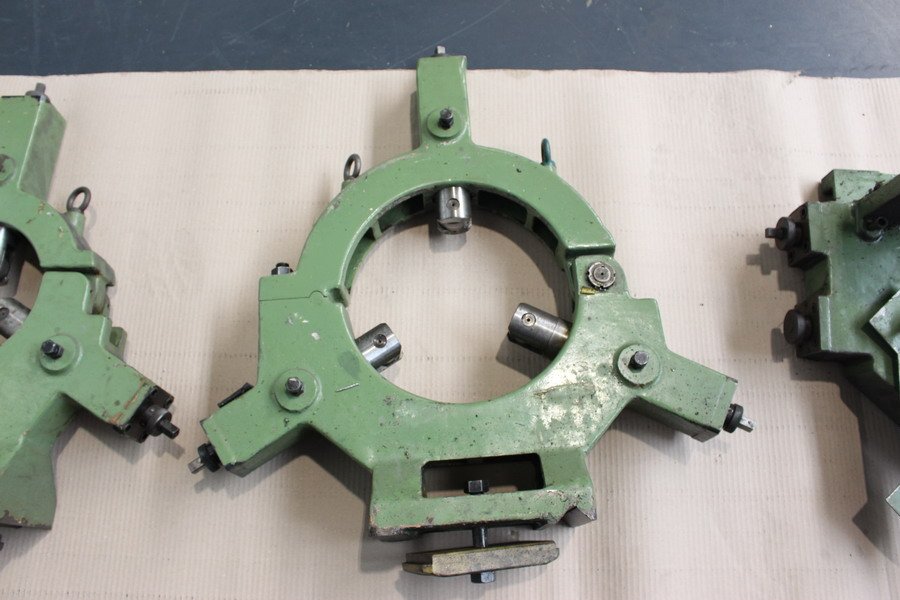

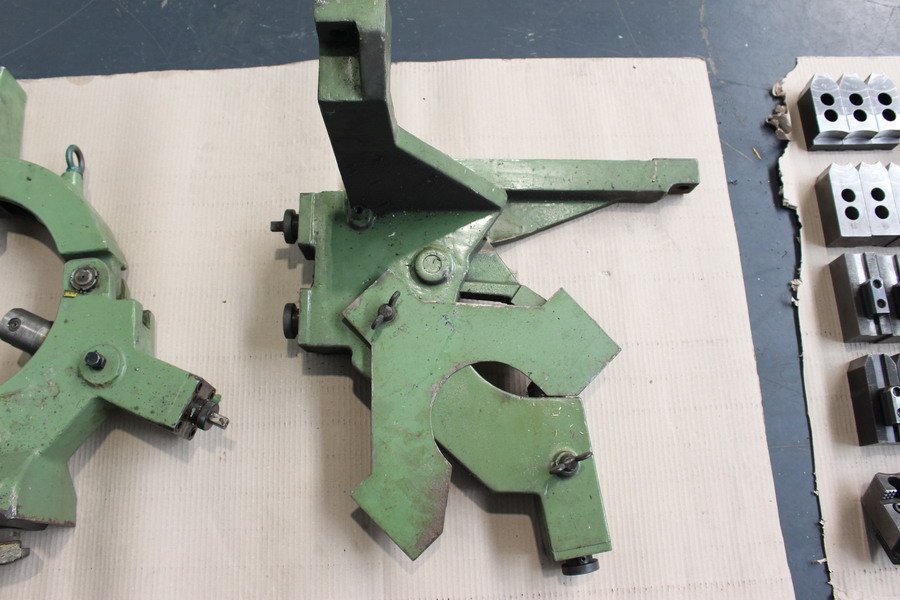

Steady rest: 4 (1x 20-200 mm fix; 1x 150-300 mm fix; 1x rotating; 1x hydraulic)
