YEAR: 2008
MAX ROTATING DIAMETER: 680 mm
MAX TURNING LENGTH: 1000 mm
MAX TURNING DIAMETER: 465 mm
SPINDLE : 3500 rpm; 31-42 Kw; 495-600 Nm; 315 mm
X-AXIS TRAVEL: 300 mm
Z-AXIS TRAVEL: 1050 mm
RAPID FEEDS X-Z: 30-30 m/min

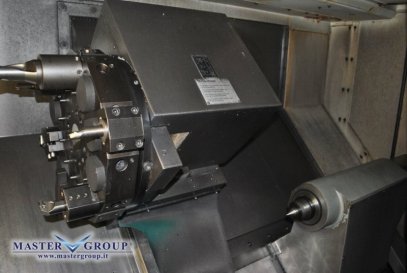

DRIVEN TURRET HEAD: 12 POS; 4000 rpm; 6,3 Kw

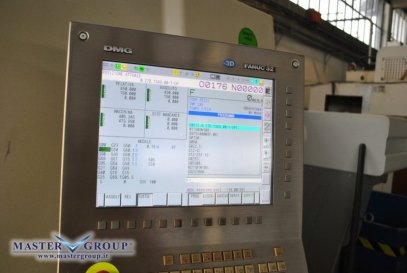

CONTROL UNIT: FANUC 32i
WORKING HOURS: 3000
ACCESSORIES: SWARF CONVEYOR
NOTE: WITH No 2 AXIAL TOOLS, No 2 RADIAL TOOLS, No 4 FIXED TOOLS
