DMT Kern, CD 280, CNC LATHE, LATHES

Condition:Used
Category:LATHES
Type:CNC LATHE
Manufacturer:DMT Kern
Model:CD 280
YOM:2003
Location:Netherlands, BABBERICH
Price:On request
Stock No:8536
Control:Manual
ID:AS29716

Details in PDF

Send request

Report incorrect information

+ Add to shortlist

Copy offer link

Description:

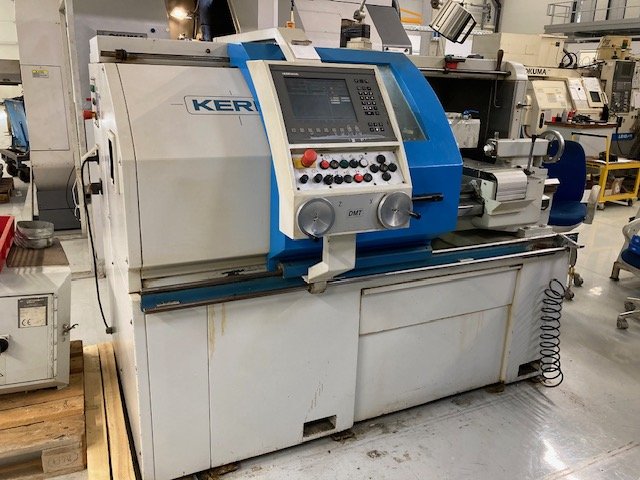

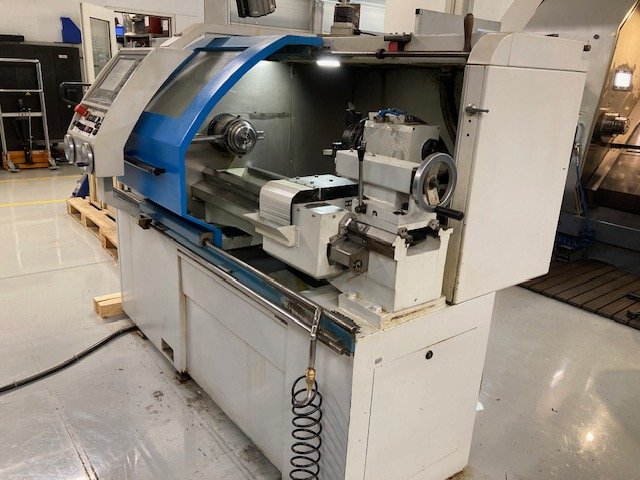

CNC lathe
DMT KERN - CD 280
MACH-ID 8536
Make: DMT KERN
Type: CD 280
Year: 2003

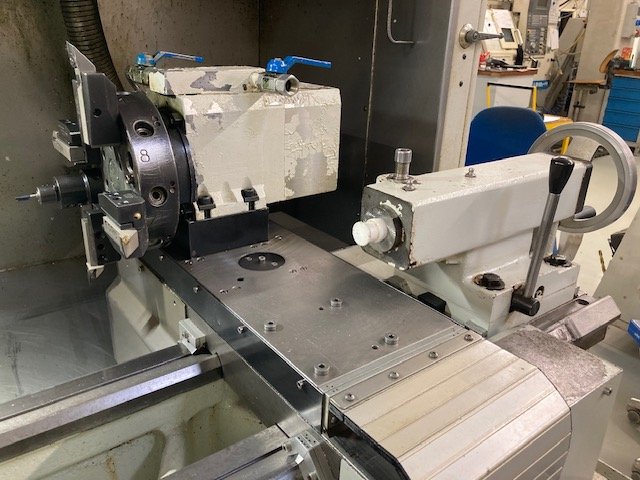

8 Position revolver Vdi

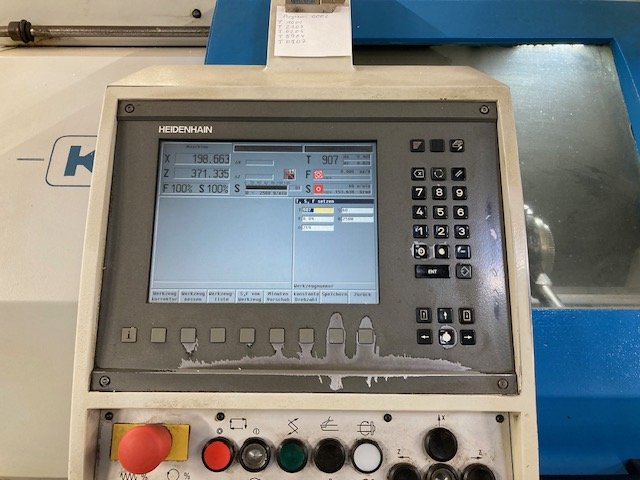

Heidenhain manuel plus

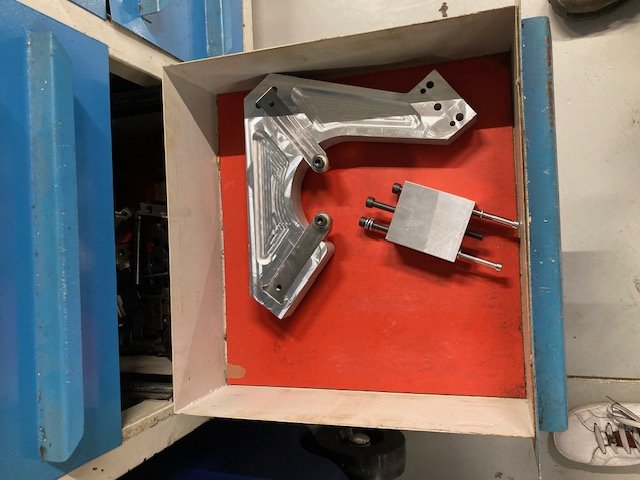

Steady rest

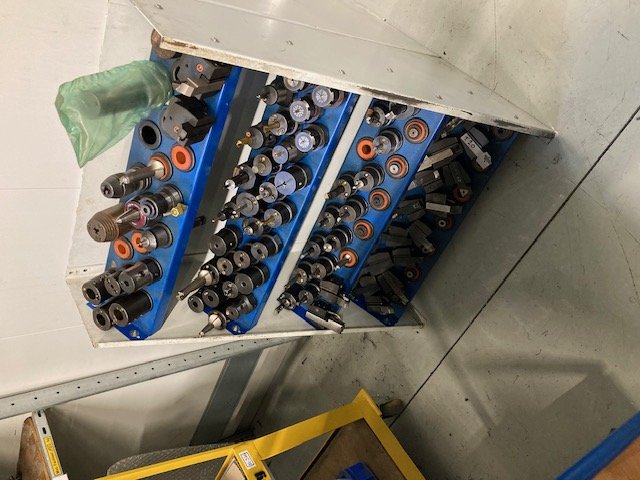

Large tooling package

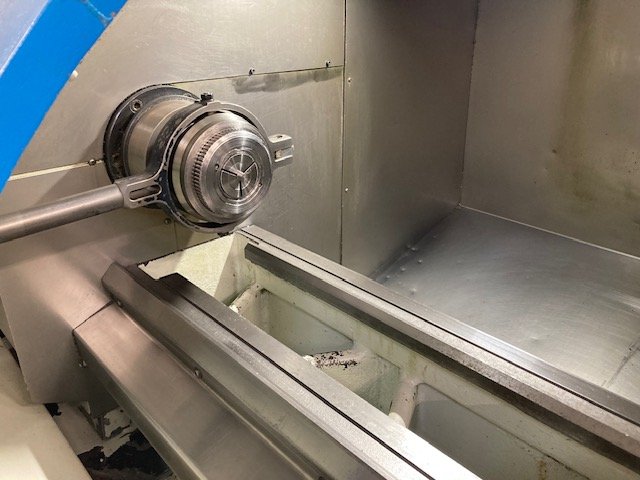

Collet device with inserts
Forkardt 3 Chuck

Swing over bed Ø: 280mm
Swing over cross slide Ø:140mm
DBC Turning Length: 500mm
Spindle bore: 41mm

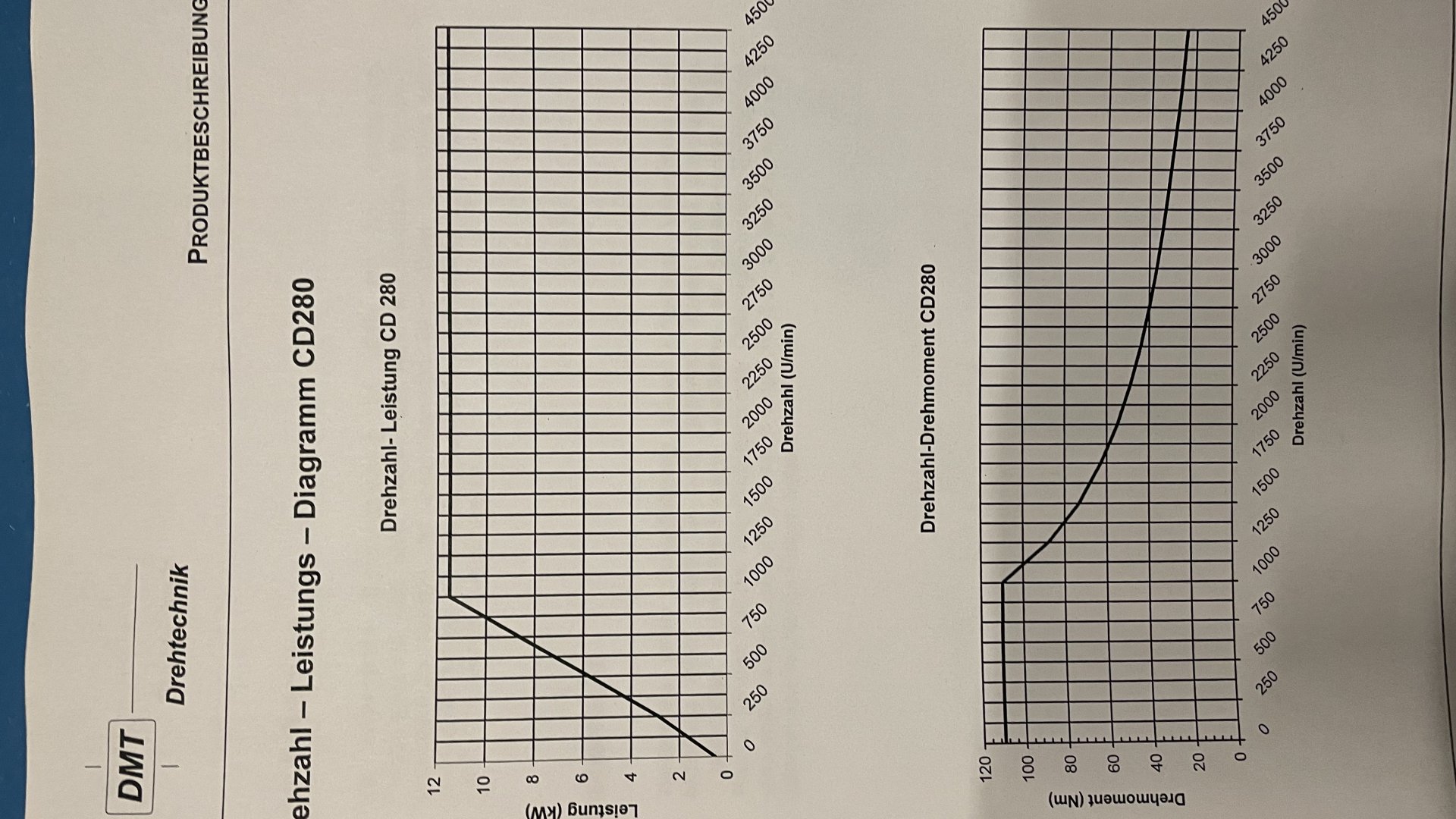

Spindle power: 11,5kW
Tailstock spindle Ø: 50Ø
Stroke pinole: 120mm
Spindle taper: 3Mk
Speeds / ranges: Vario 0 - 4500Rpm
Feed rate X-Axis: 2000mm/min.
Feed rate Z-Axis: 2000mm/min.

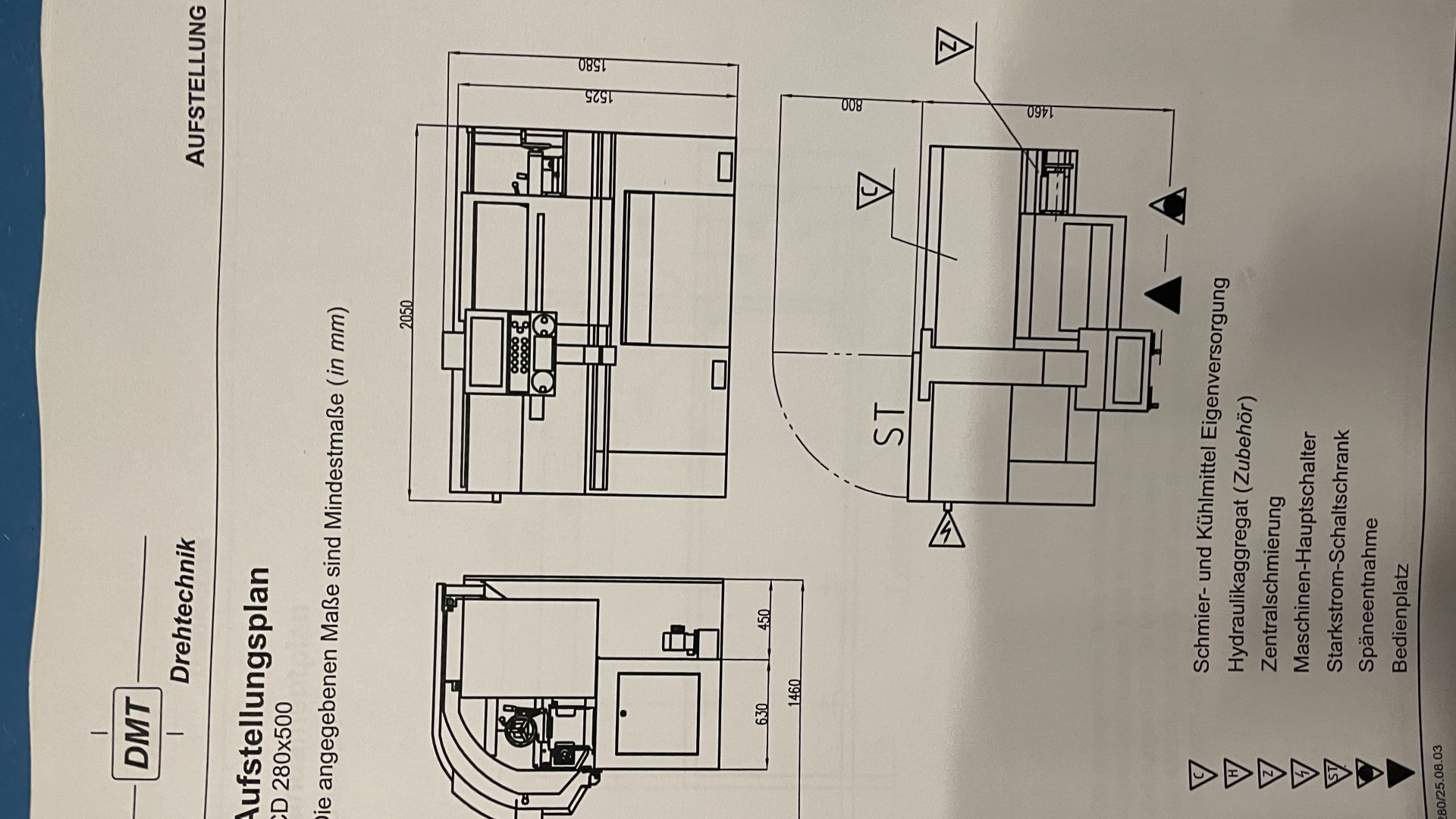

Length: 2050mm
Width: 1460mm
Height: 1550mm
Weight: 1200kg

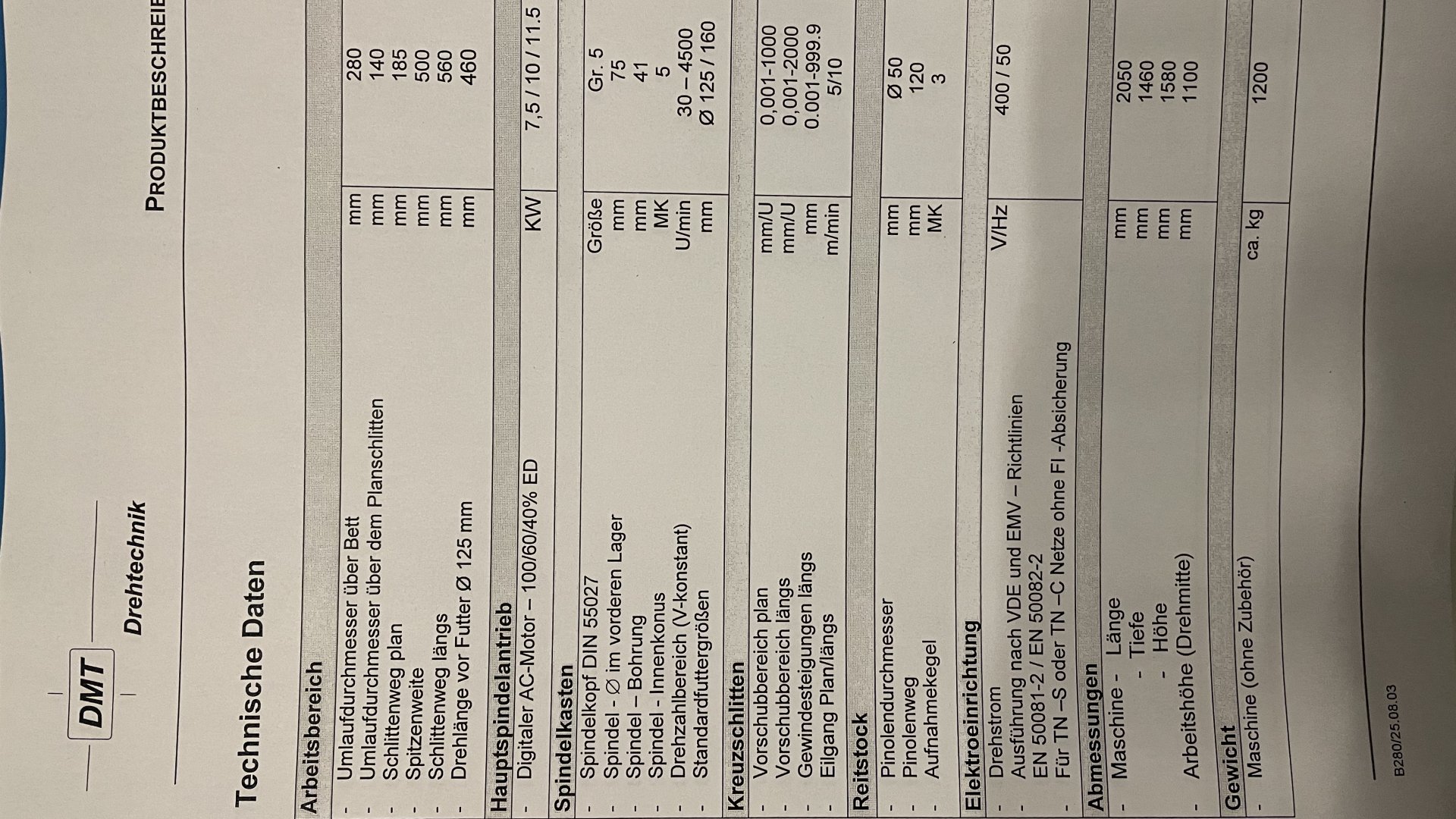

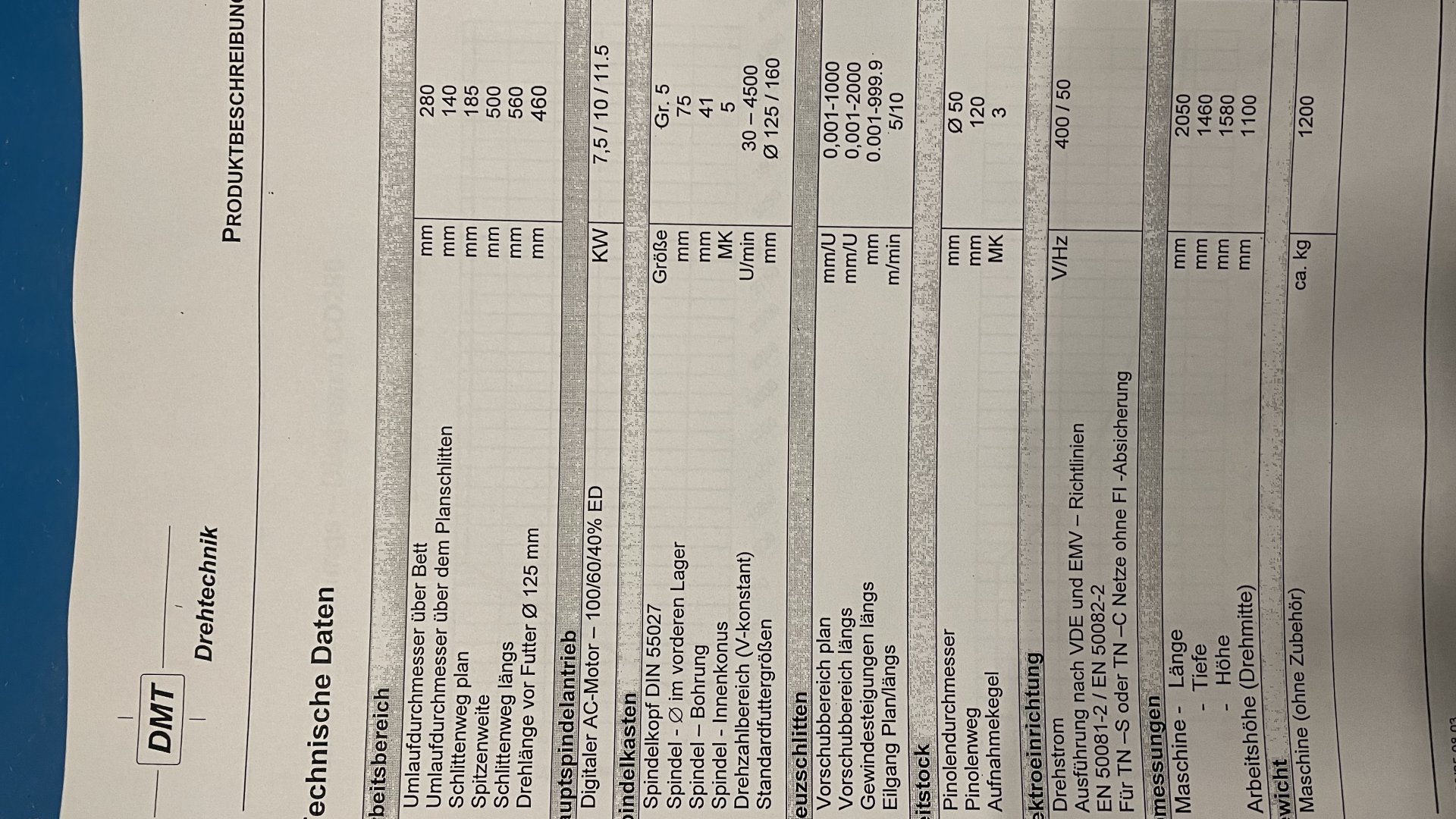

Specifications:

CNC lathe
DMT KERN - CD 280
MACH-ID 8536
Make: DMT KERN
Type: CD 280
Year: 2003
CNC lathe
8 Position revolver Vdi
Heidenhain manuel plus
Steady rest
Large tooling package
Collet device with inserts
Forkardt 3 Chuck

Swing over bed Ø: 280mm
Swing over cross slide Ø:140mm
DBC Turning Length: 500mm
Spindle bore: 41mm
Spindle power: 11,5kW
Tailstock spindle Ø: 50Ø
Stroke pinole: 120mm
Spindle taper: 3Mk
Speeds / ranges: Vario 0 - 4500Rpm
Feed rate X-Axis: 2000mm/min.
Feed rate Z-Axis: 2000mm/min.
Length: 2050mm
Width: 1460mm
Height: 1550mm
Weight: 1200kg

Dealer name:

Mach4Metal Netherlands, Babberich
