turning diameter 400 mm
turning length 600 mm

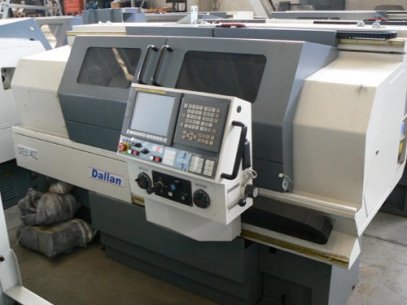

control Fanuc Oi-TC MGI
bed width 205 mm
spindle taper A2-6
spindle bore 40 mm
transmission ratio stufenlos
tailstock quill diameter 42 mm
tailstock quill stroke 110 mm
max. length of work piece 600 mm
max. swing over slide 145 mm
x-travel 190 mm
z travel 550 mm
chuck size 165 mm
taper of spindle bore 5 MK
rapid traverse x/z 4/5 m/min
repeatability of toolpost 0.008 mm

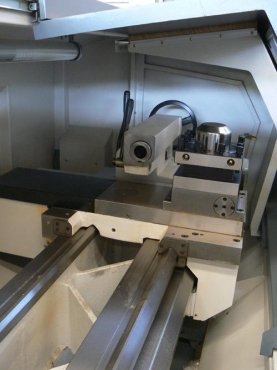

vertical 4-position toolpost changing time 2.4 s
taper of tailstock quill 3 MK
power requirement 4 kW
weight of the machine ca. 1000 kg
dimensions of the machine ca. 1790×1520×1450 mm
Accessories
electric handwheel 2 Stk.
cooling system
working lamp
chuck guard
tools
door lock
coolant system
swivellable control

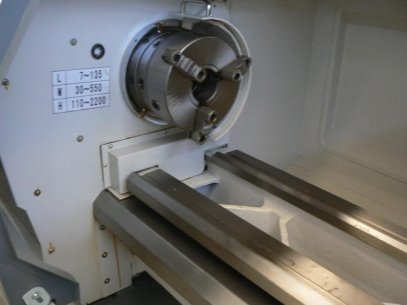

3-jaw chuck diameter 300 mm
chip bin, removable
FANUC 0i-TC mit "Manual guide I"
chip bin, removable
Paint colour: Ash grey/dark grey (RAL 7012) gloss

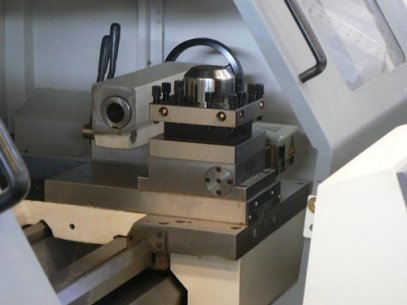

electric 4 position coolant-through tool post
Additional information
main features:
-high speed
-high spindle torque
-big spindle bore
-automatic forced lubrication
-hardened and ground guideways
-brand-new design eterior
-CE certificate of TÜV Rheinland, Germany & ISO 9001 CQC, China
warranty: 12 months on parts only
payment: 100% before loading
tech. documentation: in english
