main features:
-high speed
-high spindle torque
-big spindle bore
-automatic forced lubrication
-hardened and ground guideways
-brand-new design eterior
-CE certificate of TÜV Rheinland, Germany & ISO 9001 CQC, China
turning diameter 500 mm
turning length 1500 mm
control Fanuc Oi-TC MGI
bed width 400 mm
spindle taper D8
spindle bore 82 mm
transmission ratio 3-stufen
tailstock quill diameter 75 mm
tailstock quill stroke 150 mm
max. length of work piece 1500 mm
max. swing over slide 280 mm
x-travel 280 mm
z travel 1430 mm
chuck size 250 mm
taper of spindle bore 1:20
rapid traverse x/z 6/10 m/min
repeatability of toolpost 0.008 mm
vertical 4-position toolpost changing time 2.4 s

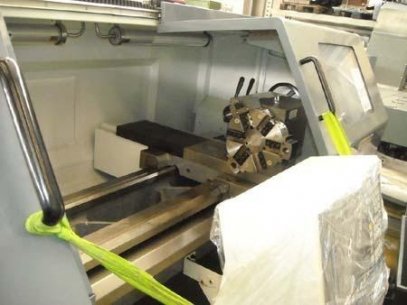

horizontal 6-position toolpost changing time 3.0 s
taper of tailstock quill M5 MK
power requirement 7,5 kW
weight of the machine ca. 2700 kg
dimensions of the machine ca. 3330x1750x1620 mm
accessories:
electric handwheel 2 Stk.
cooling system
working lamp
chuck guard
tools
door lock
coolant system
3-jaw chuck dia. 250 mm
swivellable control
electric 4 position coolant-through tool post
Paint colour: Ash grey/dark grey (RAL 7012) gloss
chip bin, removable
CNC control Fanuc 0i-TC with Manual guide I
