-high speed
-high spindle torque
-big spindle bore
-automatic forced lubrication

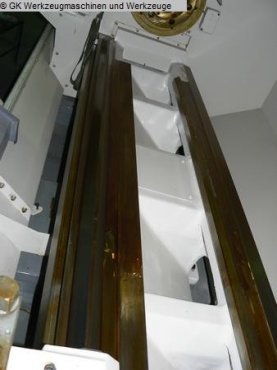

-hardened and ground guideways
-brand-new design eterior
-CE certificate of TÜV Rheinland, Germany & ISO 9001 CQC, China
Specifications:
turning diameter 630 mm
turning length 2735 mm
control Fanuc 0iTC MGI
turning diameter over bed 630 mm
bed width 550 mm
spindle taper C11
spindle bore 100 mm
spindle speed: 222-1000
transmission ratio 4-stufig
tailstock quill diameter 100 mm
tailstock quill stroke 240 mm
max. length of work piece 3000 mm
max. swing over slide 320 mm
x-travel 420 mm
z travel 2735 mm
chuck size 320 mm
taper of spindle bore 1:20
rapid traverse x/z 4/8 m/min
frequency conversion motor power 11 kW
