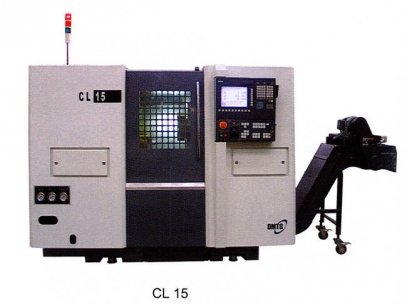

The new CL series of CNC slant bed lathes with rigid cast-iron structre hardened(50-52HRC) and ground guarantee high precision and stability.The machine bed is made of heat stabilised cast-iron.Varous configuration are available with sindles from ASA 5" to ASA 15",power up to 30kW and tuming length up to 3000mm,A wide range of options and accessories allow the machine to be highly customised for very accurate and reliable machining.
WARRANTY: 12 months spare parts
PAYMENT: 100% before loading
turning diameter 400 mm
turning length 320 mm
control Fanuc Oi-TC MGI
turning diameter over slide 160 mm
spindle taper ISO A2-5
spindle speed: 50-5000
tailstock quill diameter 60 mm
tailstock quill stroke 80 mm
max. dia over bed 200 mm
chuck size 150 mm
guideway linear
motor power main spindle 5.5
dia. spindle bore 46 mm
bar material dia. 32 mm
x-travel 120 mm
z travel 330 mm
rapid speed x-axis 15 m/min
rapid speed z-axis 18 m/min
number of tool in the disc turret 8 Stck.
tool size 20 x 20 mm
taper of tailstock quill 3 MK
power requirement 5.5(7.5) kW
weight of the machine ca. 3500 kg
dimensions of the machine ca. 2350x1555x1880 mm
accessories:
technical documentation
linear guide
hydraulic tailstock
hydraulic tool turret
stepless spindle speed
helical bed 60°
chip conveyor
Foot pedal control of tailstock and chuck
Hydraulic hollow 3 jaw chuck and chucking cylinder 150 mm
spindle speed monitor
