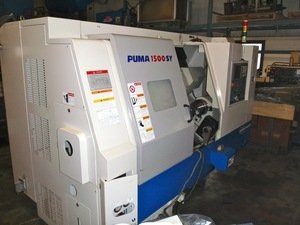

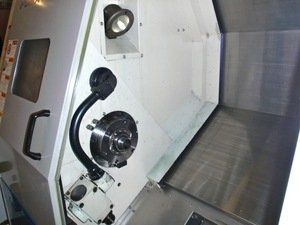

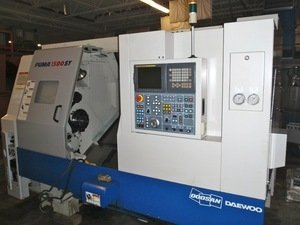

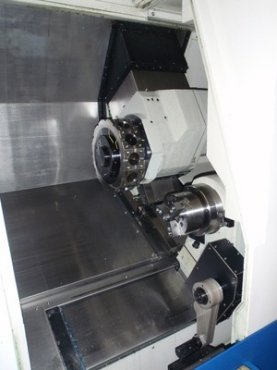

Doosan-Daewoo Puma 1500 SY CNC Lathe, Mfg. 2005, C-Axis, Live Tooling, Y-Axis, Fanuc 18iTB, 6,000 RPM, Sub-Spindle

Doosan Puma 1500SY Turning Center Ref #: 3110
Model #: 1500SY New In: 2005
Specifications:
Swing Over Bed 23.6”
Swing Over Saddle 21.6”
Recom. Turning Diameter 6.7”
Max. Turning Diameter 12.9”
Max. Turning Length 20.8”
Bar Working Diameter 1.77”
X-Axis Travel 9.8”
Z-Axis Travel 22.8”
Y-Axis Travel 3.9” +/- 1.9”
B-Axis Travel 22.8”
Spindle Speed 6000 RPM
Spindle Nose A2#5
Spindle Through Hold Dia. 2.08”
Min. Spindle Indexing Angle (c-axis) 0.001 deg.
No. Of Tool Stations 12
OD Tool Size 1”
Boring Bar Diameter 1.57”
Indexing Time 0.1 sec
Rotary Tool Spindle Speed 6,000 RPM
Sub-Spindle Speed 6,000 RPM
Sub-Spindle Through Hole Dia. 1.77”
Min.Sub-Spindle Indexing Angle (c-axis) 0.001 deg
Rapid Traverse (x/z axis) 787/945 IPM
Rapid Traverse (y axis) 295 IPM
Rapid Traverse (b axis) 787 IPM
Main Spindle Motor 20/15 HP
Sub Spindle Motor 10/7.5 HP
Rotary Tool Spindle Motor .5 HP
Electric Power Supply 46.1 kVA
Dimensions (LxWxH) 123”/136” x 67” x 81”
Machine Weight 11,700 lbs
Equipped With:
- Fanuc 18i-TB CNC Control - 12 pos. Turret
- Tool Probe - (2) Radial Heads
- Parts Catcher - (1) Axial Head
- Sub-Spindle - Chip Conveyor

136" x 67" x 81"

11,700 lbs.
