Lathe, 2 Axis CNC, Universal, Fanuc 21iT Control, Swing Over Bed 19.68”, Max Cut Dia 12.20", 2.5" Bar x 17.71" Z, 20 H.P, 4,500 RPM, 12 Position Turret, Tool Presetter, 10" Hyd Chk, Chip Conveyor

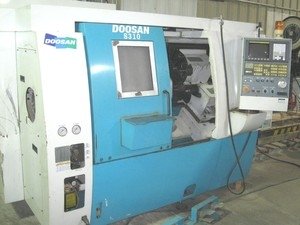

2003 Doosan S310
2-Axis CNC Lathe, Universal
Fanuc 21iT Control

Specifications:

Maximum Swing Over Bed 19.68"
MaximumTurning Diameter 12.20"
Bar Capacity 2.5"
Maximum Turning Length 17.71"
Chuck Size 10"
X-Axis Travel 7.87"
Z-Axis Travel 17.72"
Rapid Traverse X,Z 787 IPM
Spindle Nose / Bore A2-6" / 3.03"
Spindle Speed 45 - 4500 RPM
Spindle Motor 20/15 HP

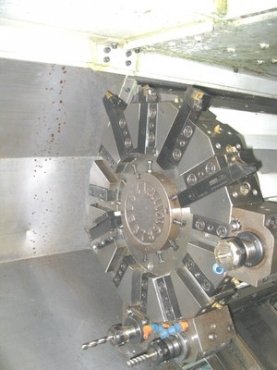

Machine Turret Type 12 Pos
Tailstock Quill Diameter/Travel/Taper 3.54"/3.94"/MT #5
Approx Dimensions 100" x 73" x 70"
Approx Weight 7,275 Lbs

Specifications subject to confirmation at inspection

Equipped With:

Fanuc 21iT Control Tool Presetter

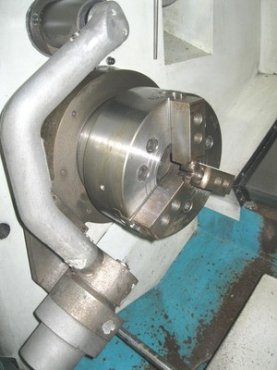

10" 3-Jaw Hyd. Chuck Hydraulic Tailstock
Coolant System Full Guarding
Parts Catcher Turbo Chip Conveyor
All Available Manuals All Available Tooling

Condition: Good - Very Good

100" x 73" x 70"

7,275 Lbs
