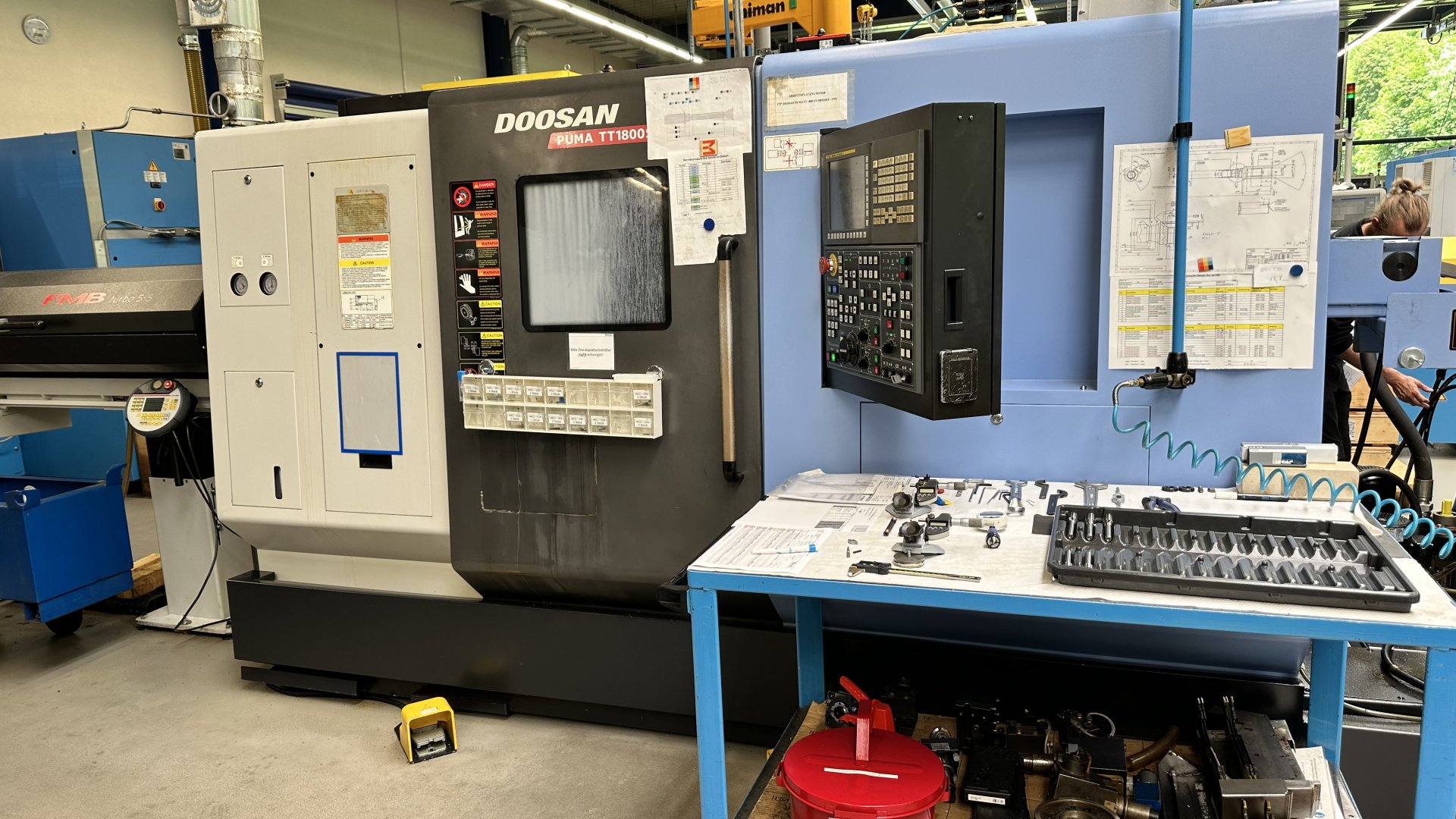

CNC Lathe with y-axis
DOOSAN - TT 1800
High-producticity turning center
Twin opposed spindles

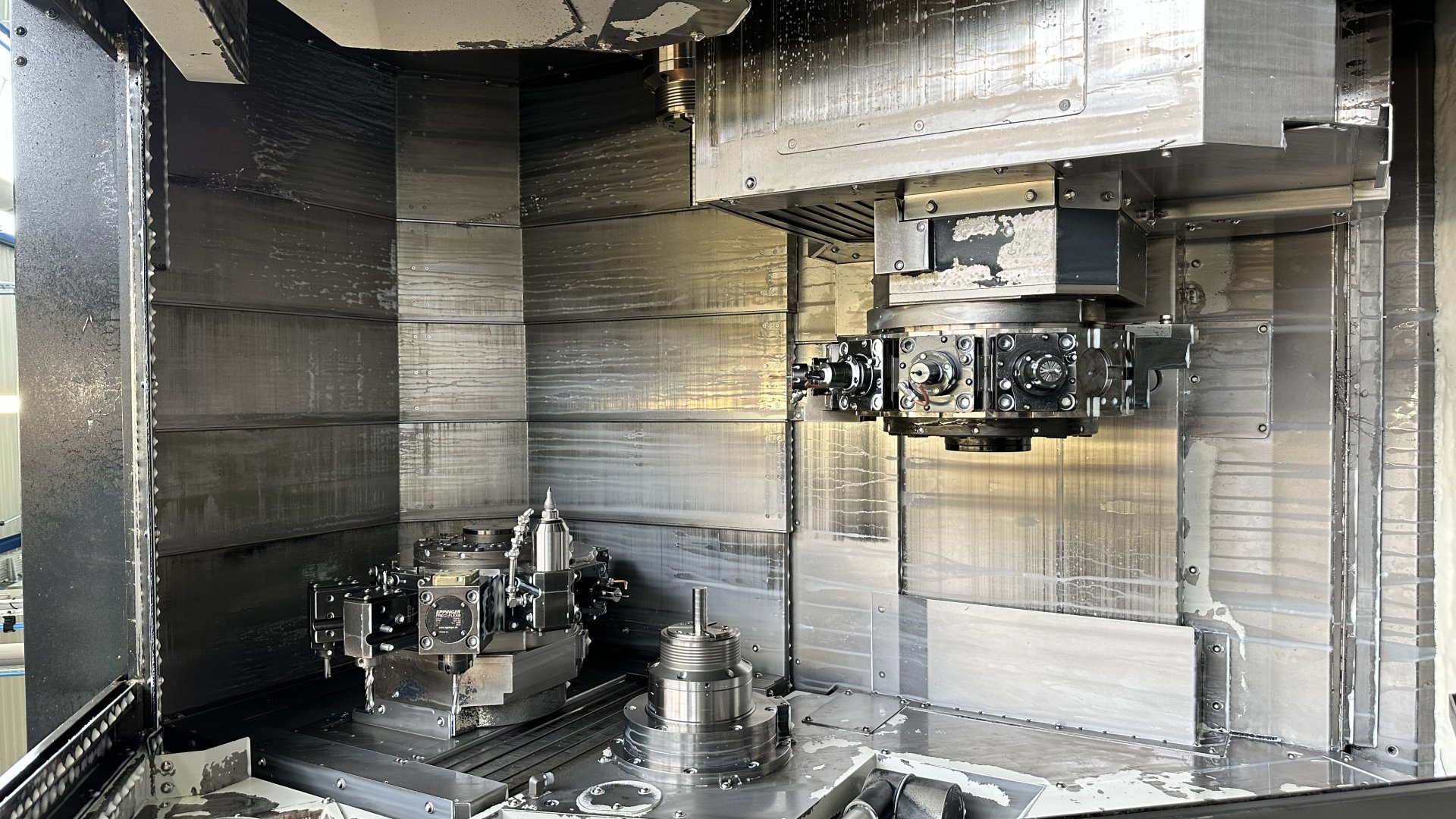

Upper and lower turrets
For machining complex parts with 24 position tool position with numerous tools


Max. turning Ø: 230mm
X-Axis: X1:165 and X2:190mm
Y-Axis: 100mm
Z-Axis: Z1:700 and Z2:720mm
Spindle bore: 76mm
Speedrange: 5000Rpm
Spindle power: 22kW
Subspindle speeds:5000Rpm
Subspindle bore: 76mm
Subspindle power:22kW
ATC / revolver: 24

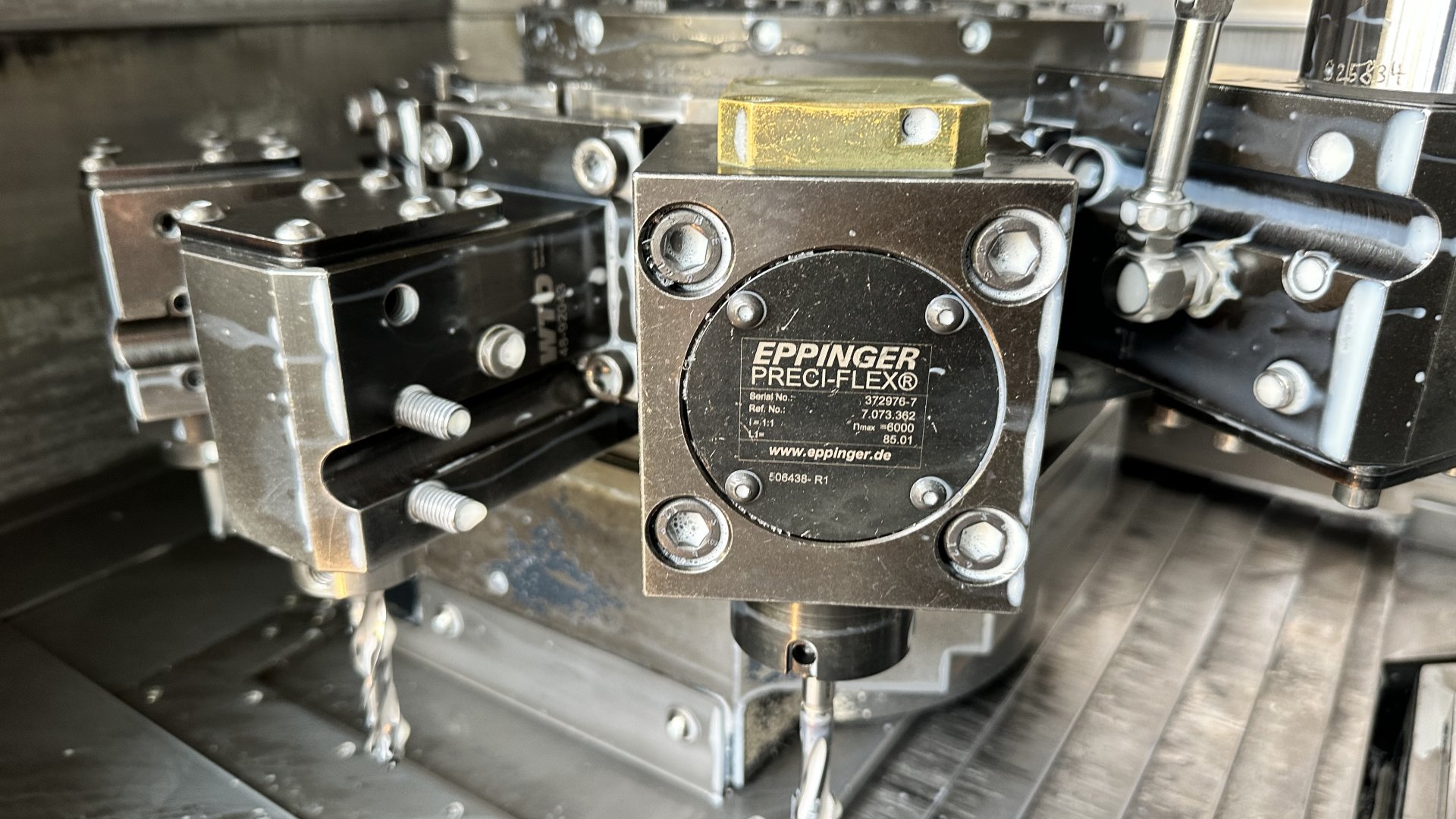

Speed live tools:5000Rpm
Power live tools:5.5kW
Chip conveyor: Yes
Tool eye: Yes
Hours: 10.400H
Length: 4500mm
Width: 2700mm
Height: 2900mm
Weight: 7800kg
