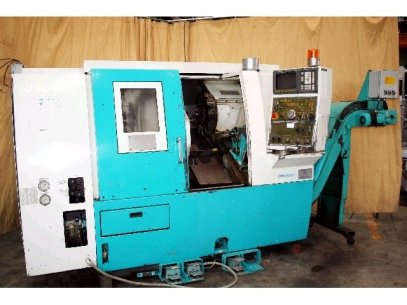

Doosan DooTurn 310 2-Axis CNC Turning Center

Swing over Bed 19.68"
Distance Between Centers 17.71"
Maximum Turning Diameter 12.20"
Maximum Turning Length 17.71"
Spindle Nose ASA A2-6
Hole Thru Spindle 3.03"
Spindle Speeds 45-4500 RPM
Turret Type V12
Maximum Number of Tools 12
X-Axis Travel 7.87"
Z-Axis Travel 17.72"
Rapid Traverse Rate X-Axis 78.7 FPM
Rapid Traverse Rate Z-Axis 98.4 FPM
Tailstock Quill Diameter 3.14"
Tailstock Center Bore No. 4 MT
Tailstock Quill Travel 4.72"
Main Motor (Continuous/30 Minute Rating) 10 HP / 12 HP
Approximate Weight 7000 lbs
