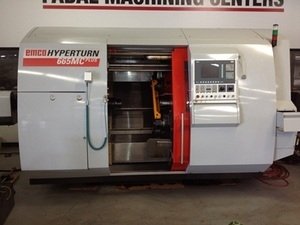

EMCO Hyperturn 665-MC Plus, Siemens 840D, 2005, Live tool, sub spindle, 6-axis

Model # R74 V97
Serial # R7AS1601
Live Tool, C-axis, Sub-spindle

General Specifications As Per Brochure:
Swing Over Bed: 23.62
Swing Over Cross Slide: 19.68
Distance Between Spindles: 39.37
Max Turn Diameter: 16.92
Max Turn Length: 29.29
Travel
X/X2 Axis: 11
X/X2 Axis: 15.74/8.07
Z/Z2 Axis: 29.5/8.07
Z/Z2 Axis: 35.4/28.52
Z3 Axis: 29.5/29.52
Y Axis: via milling interpulation
C Axis: .001
Bar Capacity Spindle 1: 2.5
Spindle Bore 1: 2.87
Spindle Bore 2: 2.08
Spindle Speed 1: 5000 rpm
Spindle Speed 2: 7000 rpm
Spindle Motor 1: 38 HP
Spindle Motor 2: 29 HP

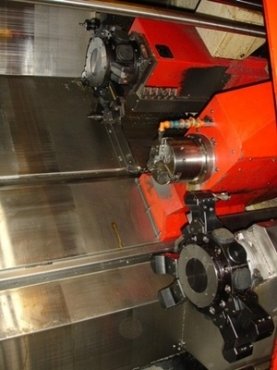

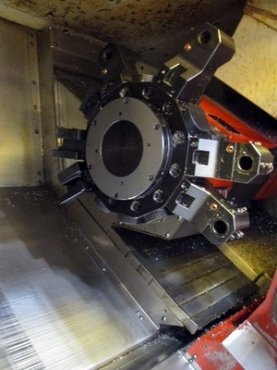

No. of Turrets: 2
Equipped with:

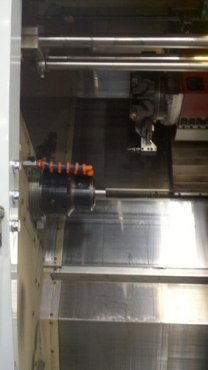

Main Spindle Collet Chuck
Sub-spindle with 5" 3-jaw Chuck
LNS ECO Load Short Bar Loader, Length of spindle
Misc ID and OD Tooling
Parts Catcher with shuttle parts conveyor
Machine is capable of live tooling ( Live tools available... POR)
