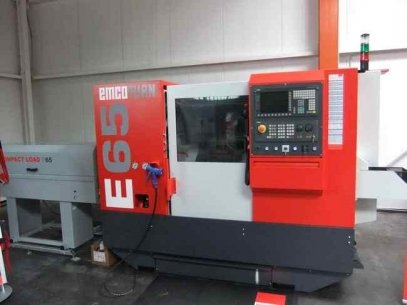

CNC - lathe demonstration from Remscheid! X / Z 210/610mm Bar capacity 65mm Max swing 310mm swing over bed 540mm Distance between centers 680mm rapid traverse 24 m Max speed 4200 rev / min spindle A2-6 Max power output of 18 kW Max torque 192 Nm turret 12 stations VDI 30 All stations driven configuration of the machine: SIEMENS 828 D SL ShopTurn Electronic handwheel PC - Keyboard & Hardware erecting machinery parts catcher EMCO Compact Load (short bar loader) PULL DOWN key tool cleaning gun high pressure coolant system, the machine can be inspected under power in Remscheid!

-
