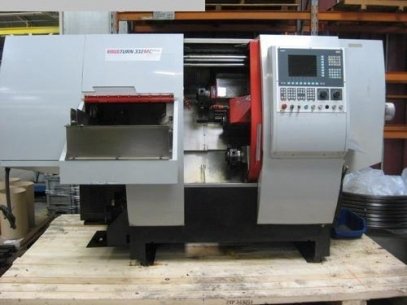

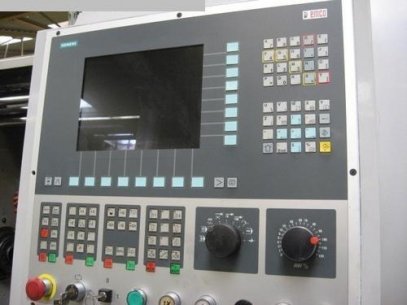

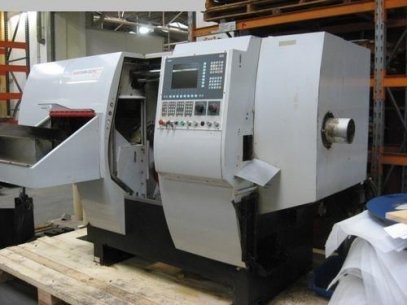

Turning diameter: 140 mm turning length: 510 mm Swing over bed: 430mm Swing over carriage: 210 mm Turning diameter: 300 mm swing diameter for chucking work: 220 mm Speed: V = 10 - 8000 rpm / H = up to 7000 rpm Antriebslstg. Spindle: 9 kW Spindle speed: 4000 rpm total power requirement: 11 kW / 400 volts Machine weight: 3000 kg Dimensions: approximately 2.80 x 2.00 x 2.00 mtr. Accessories / equipment: CNC control Siemens 840 D 48 - atc 12 - station turret with slide - Record: Capito A 4 C - axis on both spindles Abgreifstation - pick-up spindle 10 kW / 7000 rpm, distance between the spindle poles: 720 mm Spindle taper: DIN 55026 / A 4
