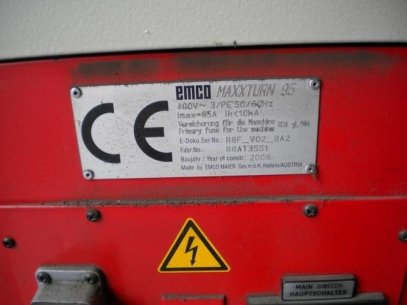

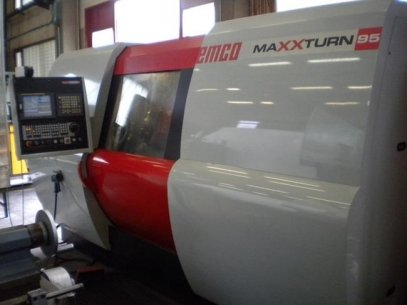

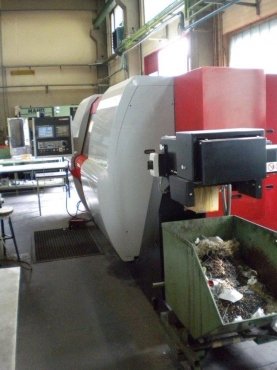

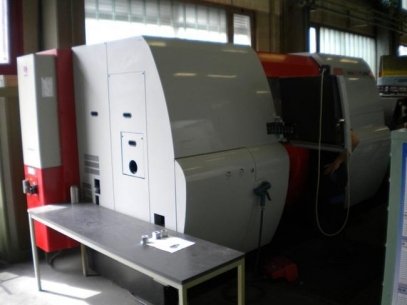

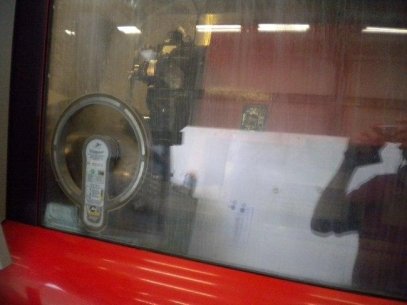

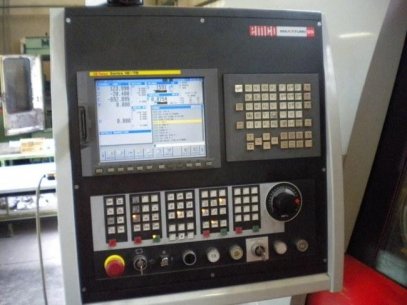

CNC Lathe Emco MAXXTURN 95 peak width 1230mm max turning diameter 450mm circular diameter over bed 700mm max bar capacity 95mm Travel x / y / z 303/140/1160 rapid travel x / y / z 24/12 / 30mm max speed 3500 rev / min spindle A2-8 max . Drive power 33kW Max torque 800Nm automatic tailstock, travel 850mm inner cone MK4 turret VDI 40 Number of tools 12, which are driven 12 max. Speed max / 4000 rpm max input power 8kW. 35Nm torque LxBXH x 4750 2050 x 2200mm Weight 11000kg chip conveyor built in 2006 machine from special machines, maximum 1 shifts worked well maintained condition with accessories (tool holders)
