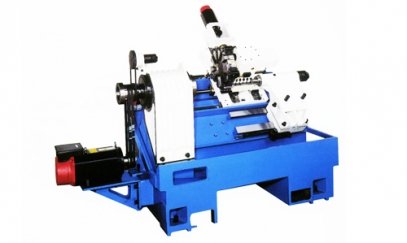

Linearways Series

Swing Over Bed in/mm 18.5" / Ø470 18.5" / Ø470
Swing Over Cover in/mm 5.5"/ Ø140 11.2"/ Ø284
Max Cutting Diameter in/mm 11" / Ø280 10.2" / Ø260
Cutting Diameter in/mm 5.4"/ Ø138 8.3"/ Ø210
Max. Cutting Length in/mm 11.4"/ Ø290 11.4"/ Ø290
Spindle Nose ASA A2-5 A2-5
Power Chuck Size in 6" 6"
Spindle Hole Diameter in/mm 2.24"/ Ø57 2.24"/ Ø57
Spindle Speed rpm 6000 6000
Spindle Motor (Cont./ 30min.) HP/KW 7.5 / 11 / ( 5.5 / 7.5 ) 7.5 / 11 / ( 5.5 / 7.5 )
Spindle Runout mm 0.003 0.003
Max. Bar Material Diameter in/mm 1.77"/ Ø45(2.05"/ Ø52 op) 1.77"/ Ø45(2.05"/ Ø52 op)
Z-Axis Travel mm 320 320
X-Axis Travel mm 320 150
Rapid Traverse- Z-Axis M/mm 30 / ( 20 ) 30 / ( 20 )
Rapid Traverse- X-Axis M/mm 30 / ( 20 ) 30 / ( 20 )
Number of Tools units 5 (Gang Type) 10 (Turret Type)
Tool Shank mm 20×20 20×20
Boring Bar Size mm Ø32 Ø32
Tailstock Travel mm - 250
Quill Travel mm - Ø80
Quill Diameter mm - Ø70
Quill Taper Hole MT - 4
Quill Activation - Hydraulic
Tailstock Positioning - Manual
Dimensions (L×W×H) M 2.1x1.6x1.57 2.1x1.6x1.57
Net Weight lb/kg 5940/ 2700 6160/ 2800
♣We reserve the rights to change specifications without further notice.
