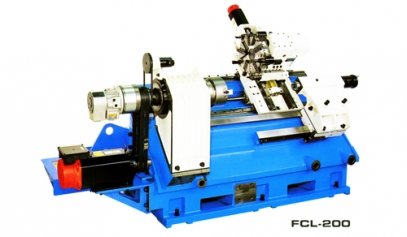

Linearways Series

Swing Over Bed in/mm 18.5" / Ø470 18.5" / Ø470
Swing Over Cover in/mm 12.5"/ Ø318 12.5"/ Ø318
Max Cutting Diameter in/mm 11.5"/ Ø292 11.8"/ Ø300
Cutting Diameter in/mm 11"/ Ø280 8.4"/ Ø213
Max. Cutting Length in/mm 19.6"/ 500 18.8"/ 479
Distance Between Centers in/mm 24.4"/ 620 24.4"/ 620
Spindle Nose ASA A2-6 A2-6
Power Chuck Size in 8" 8"
Spindle Hole Diameter in/mm Ø12 Ø62
Spindle Speed rpm 4500( 4000) 4000
Spindle Motor ( Cont./ 30 min.) HP 7.5/ 11 11/15
Spindle Runout mm 0.003 0.003
Max. Bar Material Diameter in/mm 2"/ Ø52 2"/ Ø52
Z Axis Travel in/mm 20.47"/ Ø520 20.47"/ Ø520
X Axis Travel in/mm 6.9"/ 176 6.9" / 176
Rapid Traverse- Z-Axis M/mm 30(20) 30(20)
Rapid Traverse-X-Axis M/mm 30(20) 30(20)
Manufacturer - -
Turret Specification LS-160 LS-200 / LS-200SV
Index Type Hydraulic Hydraulic/ Servo(Op)
Number of Tools unit 10 10
DIN Toolholder Specification mm - -
Slot Milling mm×mm×mm/min - -
Tapping mm×p - -
Twist Drilling mm×mm/rev - -
Tool Shank mm 20×20 25×25
Boring Bar Size mm Ø32 Ø40
Tool Change Time (T-T) sec 0.3 0.3/ 0.2
180 Tool Change Time (Non T-T) sec 1.35 1.1/ 0.6
Tailstock Travel mm 450 450
Quill Travel mm 100 100
Quill Diameter mm 75 75
Quill Taper Hole MT 4 4
Quill Activation Hydraulic Hydraulic
Tailstock Positioning Manual Manual
Dimensions (L×W×H) M 2.8x1.7x1.6 2.8x1.7x1.6
Net Weight lb/kg 8487/ 3850 8598/ 3900
