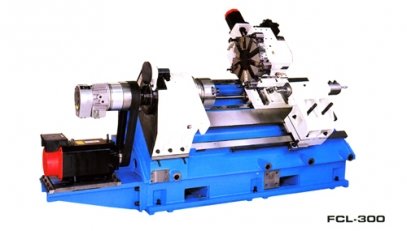

Linearways Series

Swing Over Bed in/mm 23.6"/ Ø600 23.6"/ Ø600
Swing Over Cover in/mm 13.3"/ Ø338 13.3"/ Ø338
Max Cutting Diameter in/mm 17.7"/ Ø450 17.7"/ Ø450
Cutting Diameter in/mm 13.3"/ Ø338 13.3"/ Ø338
Max. Cutting Length in/mm 27.5"/ 700 27.5"/ 700
Distance Between Centers in/mm 31.8"/ 810 31.8"/ 810
Spindle Nose ASA A2-8 A2-8
Power Chuck Size in 10" 10"
Spindle Hole Diameter in/mm 3.46"/ Ø88 3.46"/ Ø88
Spindle Speed rpm 3500 2500
Spindle Motor ( Cont./ 30 min.) HP/KW 18.5/ 22 15/18.5
Spindle Runout mm 0.003 0.003
Max. Bar Material Diameter in/mm 3"/ Ø77 3"/ Ø77
Z Axis Travel in/mm 30"/ 762 30"/ 762
X Axis Travel in/mm 9.44"/ 260 9.44"/ 260
Z-Axis Rapid Traverse M/mm 24 24
X-Axis Rapid Traverse M/mm 20 20
Manufacturer - -
Turret Specification - -
Index Type Hydraulic Hydraulic
Number of Tools unit 10 10
DIN Toolholder Specification mm - -
Slot Milling mm×mm×mm/min - -
Tapping mm×p - -
Twist Drilling mm×mm/rev - -
Tool Shank mm 25×25 25×25
Boring Tool Size mm Ø40 Ø40
Tool Change Time (T-T) sec 0.3 0.3
180 Tool Change Time (Non T-T) sec 1.5 1.5
Tailstock Travel mm 627 627
Quill Travel mm 120 120
Quill Diameter mm 85 85
Quill Taper Hole MT 4 4
Quill Activation Hydraulic Hydraulic
Tailstock Positioning Manual Manual
Dimensions (L×W×H) M 3.6x1.8x1.8 3.6x1.8x1.8
Net Weight lb/kg 11000/5600 11000/5600
