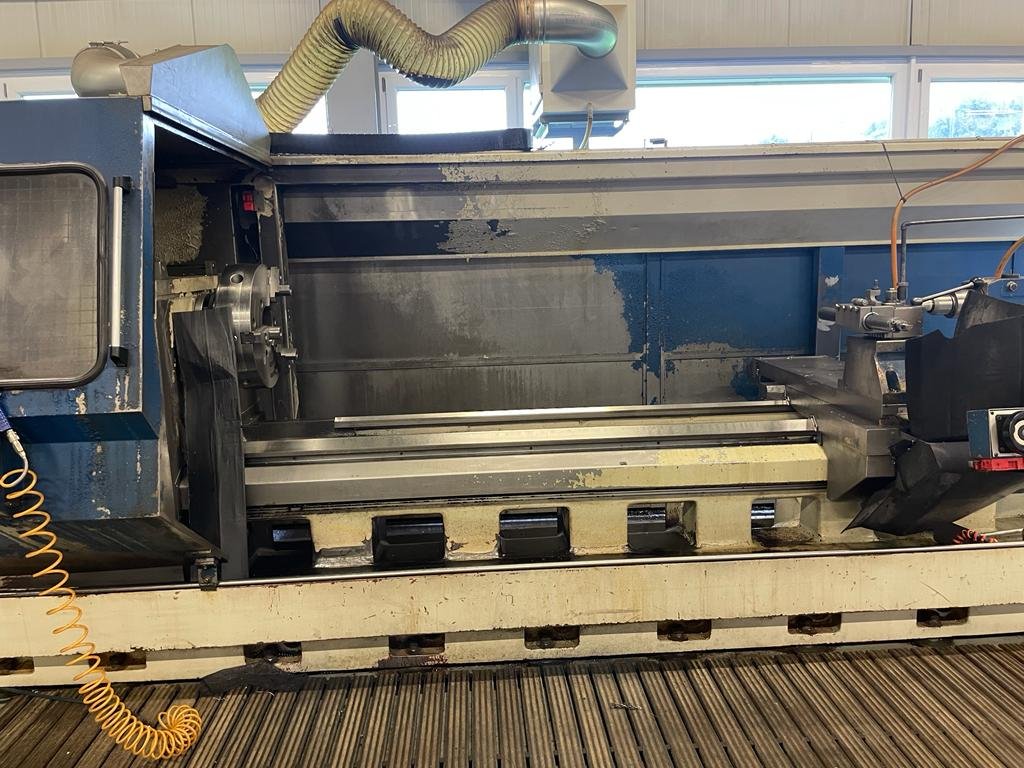

CNC lathe GEMINIS - CNC 5 Plus 870Work load between centrers 2800 Kg
Fixed steady rest 2 x
Coolant system
Quick chnage tool post


Swing over bed Ø: 870mm
Swing over cross slide Ø:560mm
Swing in the gap Ø: 910mm
DBC Turning Length: 3000mm
Gap length: 325mm
Spindle bore: 105mm
Spindle power: 37kW
Bed width: 550mm
Tailstock spindle Ø: 140Ø
Spindle taper: 5Mk
Speeds / ranges: 1400Rpm
Length: 7000mm
Width: 2300mm
Height: 2200mm
Weight: 8200kg

CNC lathe GEMINIS - CNC 5 Plus 870 Work load between centrers 2800 Kg
Fixed steady rest 2 x
Coolant system
Quick chnage tool post


Swing over bed Ø: 870mm
Swing over cross slide Ø:560mm
Swing in the gap Ø: 910mm
DBC Turning Length: 3000mm
Gap length: 325mm
Spindle bore: 105mm
Spindle power: 37kW
Bed width: 550mm
Tailstock spindle Ø: 140Ø
Spindle taper: 5Mk
Speeds / ranges: 1400Rpm
Length: 7000mm
Width: 2300mm
Height: 2200mm
Weight: 8200kg
