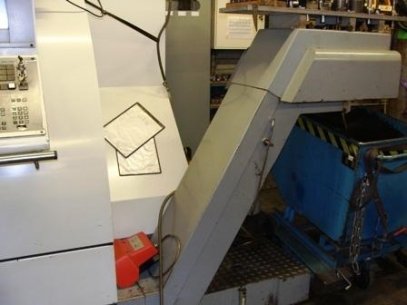

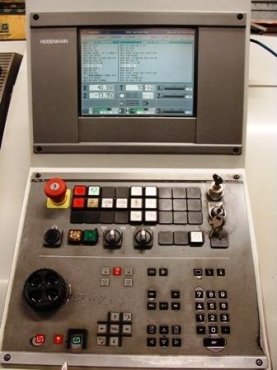

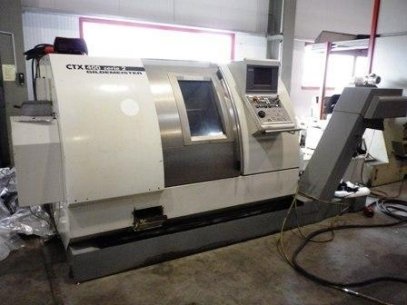

Stock No 1105-00784 Type of machine CNC Turning-and Milling Center Make GILDEMEISTER CTX 400 SERIE 2 Year 2001 Type of control CNC Heidenhain Pilot 3190 storage FRANCE Country of origin Germany Delivery time immediately Freight basis Ex WORK Technical details turning diameter 364 mm turning length 600 mm control CNC Heidenhain Pilot 3190 Swing 570 / 470 mm travel - x 220 mm travel - z 635 mm Spindle speed: 25 - 5000 1/min spindle bore 79 mm Turret 12 Pos rapid traverse X-axis 20 m / min rapid traverse Z-axis 24 m / min drive capacity - spindle motor 21 kW tailstock displacement 550 mm taper in the tailstock MT 4 quill diameter 80 mm, operating voltage 400 V total power requirement 44 kVA weight of the machine about 5, t Additional Information - Steüreung: Heidenhain Pilot 3190-3-jaw chuck 200 mm - with tailstock - revolvers 12 fold VDI 30 tool holder available - chip conveyor - Coolant system 2 AXES LATHE INTERFACE FOR CHARGING ROD MAGAZINE
