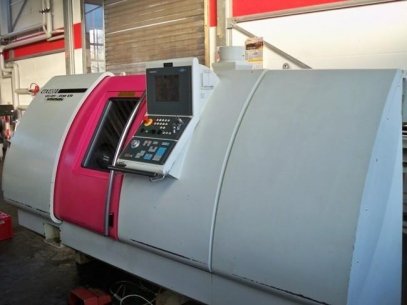

CNC Lathe Gildemeister CTX 400 Metalworking Machine

Good condition

Chuck size [mm] 200
Turning diameter [mm] 420
Turning length [mm] 635
Spindle bore [mm] 79
set-up measurements LxWxH [mm] 3570 x 1750 x 1750
Speed range [1/min] 25 - 5000
X-[mm] 220
Z-[mm] 635
Weight 5700

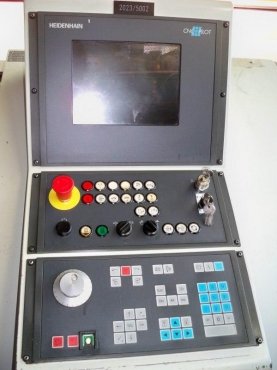

Control: Heidenhain CNC Pilot

main spindle
drive power 21 kW
torque 240 Nm
rotational speed c-axis 100 r/min

counter spindle
drive power 9 kW
torque 72 Nm
traverse 575 mm
rotational speed c-axis 100 r/min

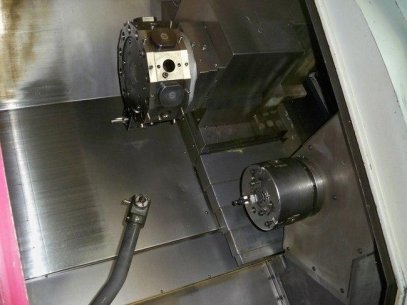

tool turret
12 stations for driven tools
rotational speed driven tools 4.000 r/min

configuration / equipment
tool measuring sensor
chip conveyor
bar package (part gripper, hollow clamping cylinder, interface for feeder)

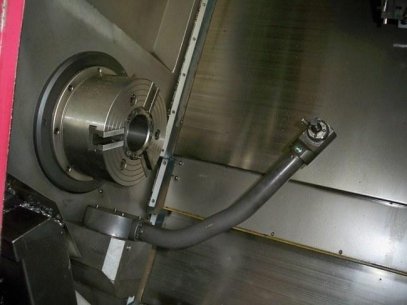

3 jaw chuck comp. Berg KH 200 on main spindle
3 jaw chuck comp. Roehm Duro-175 on counter spindle
