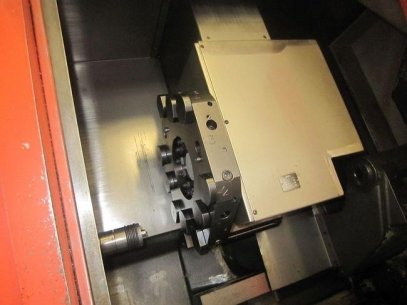

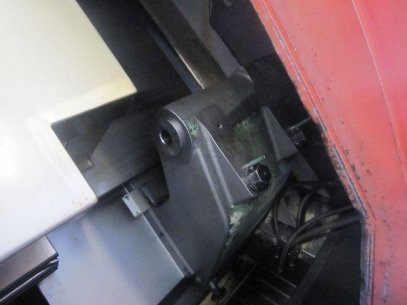

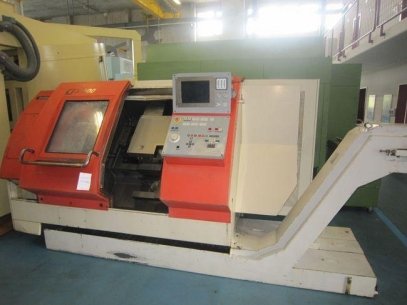

Inventory Number 17076 Make GILDEMEISTER Type CTX 400 CNC control Electropilot L-2 turning diameter over bed 510/300 mm spindle bore 72 mm turning diameter 500 mm Carriage: Longitudinal travel (Z-axis) 640 mm Cross travel (X-axis) 212 mm Turret slide: Number of Number 1 positions turret 1 12 Spindle speeds: stepless from 25 rev / min to 5000 rev / min taper 4 MK quill stroke 100 mm Feeds: longitudinal from 0 mm / min up to 8000 mm / min plan from 0 mm / min up to 4000 mm / min rapid traverse 10 / 15 m / min Voltage 50 Hz 3x 380 Volt Spindle motor 22 kW Machine weight about 5100 kg Overall dimensions machine: Length 4527 mm Width 1940 mm Height 1730 mm Various accessories: lighting tailstock Pneumatic tailstock Coolant splash cabin lubrication chip conveyor
