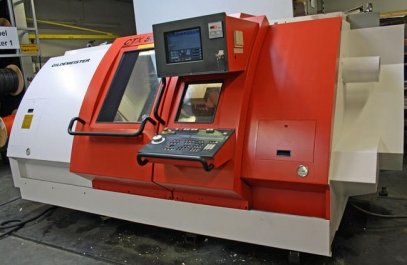

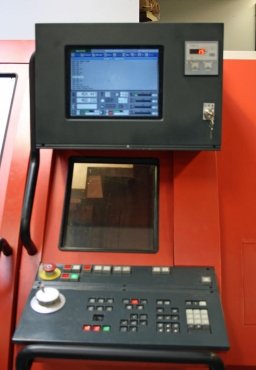

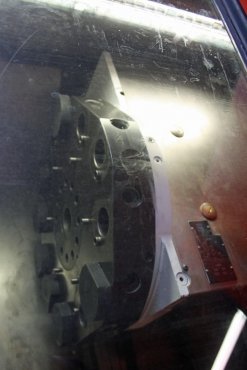

CNC Lathe - Make Gildemeister CTX 500 V3 - built in 1996 with driven tools Ue being edited - Equipment: -------- ----- control Eltropilot EP1190 TurnPlus - TFT display - 12 station turret with VDI 40 with 6 driven tool stations - C-axis - hollow clamping device, diameter 68 mm - center point contact following tools - measuring device - tailstock holder MT5 - footswitch tensioner and tailstock - chip conveyor Technical details: ------------------- Swing over bed 600 mm swing diameter over 420 mm turning length 1,000 mm Power 27 kW Speed range 16 3200 U / mion Machine weight about 7,000 kg dimensions approximately 5.1 x 2.2 x 1.9 m condition:. -------- The machine has been extensively revised in our workshop Among others, the following works were carried out: - new spindle bearings - new ball screws - main engine overhauled - revolver obsolete - checked all drive motors - Maintenance Package installed - thorough cleaning machines and subsequent painting. Caution: -------- The machine is offered with no food or drawtube. You can also order food that suits you (new or used) directly at an additional cost to us. The feed is then delivered up naturally. Order: -------- done before delivering a common radio [...Technical data truncated]
