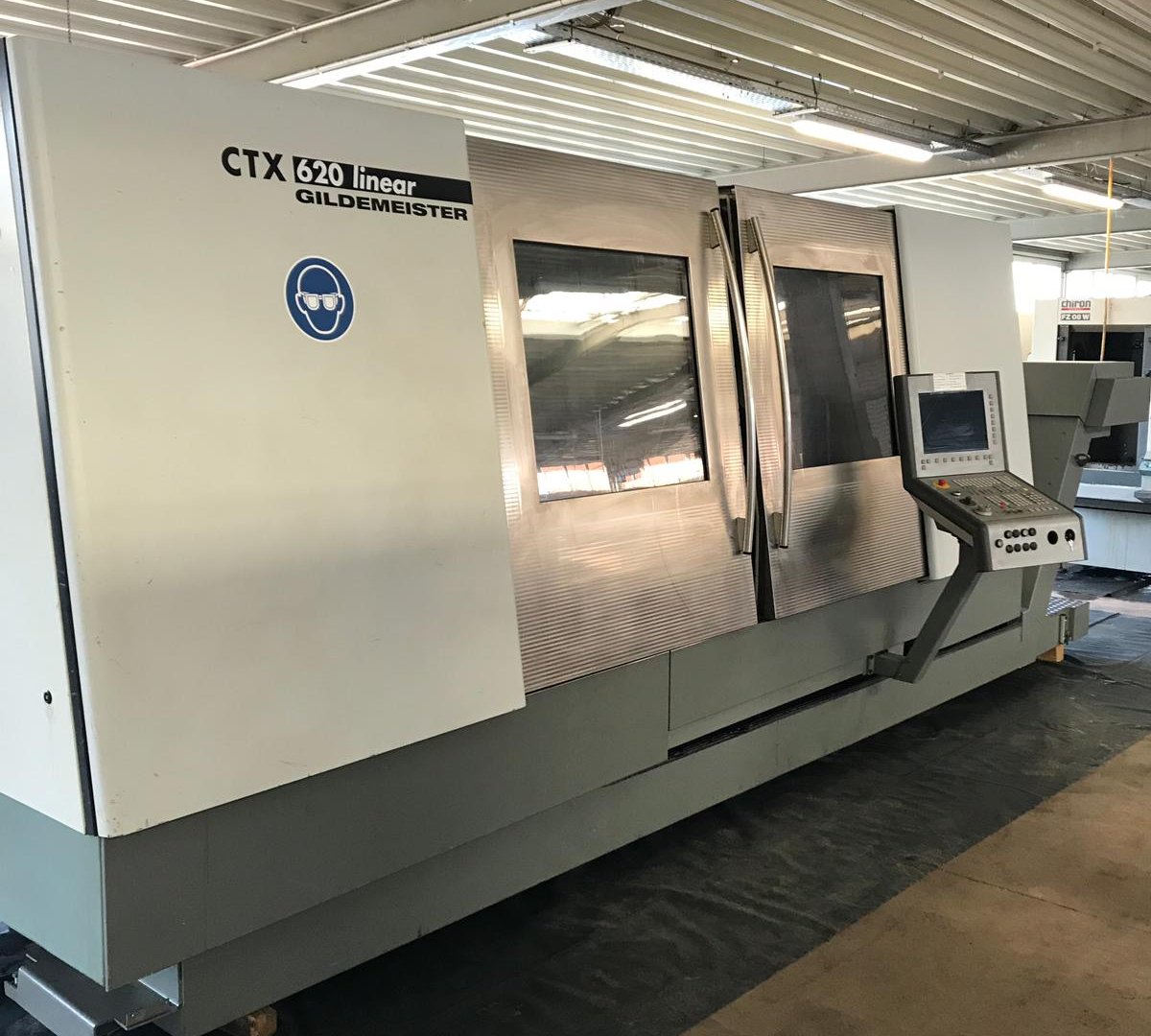

Manufacturer: Gildemeister
Type: CTX 620 linear V3
Year of construction: 2004
Control: Siemens 840 d
Swing above bed: 800 mm
Swing a.s.l. cross slide: 500 mm
Plan travel: 382 mm
Longitudinal travel: 2100 mm
Power: 40% / 100% 43/33 kW
Speed range from - until: 20-2500 RPM

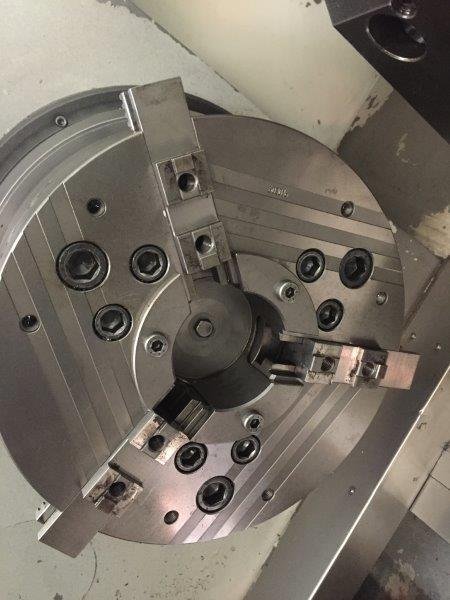

Three-jaw Chuck SMW 315 mm
Facilities
Axles: 3
Tool carrier: 12 stations VDI 50
It powered: 12 stations part hollow clamping device:

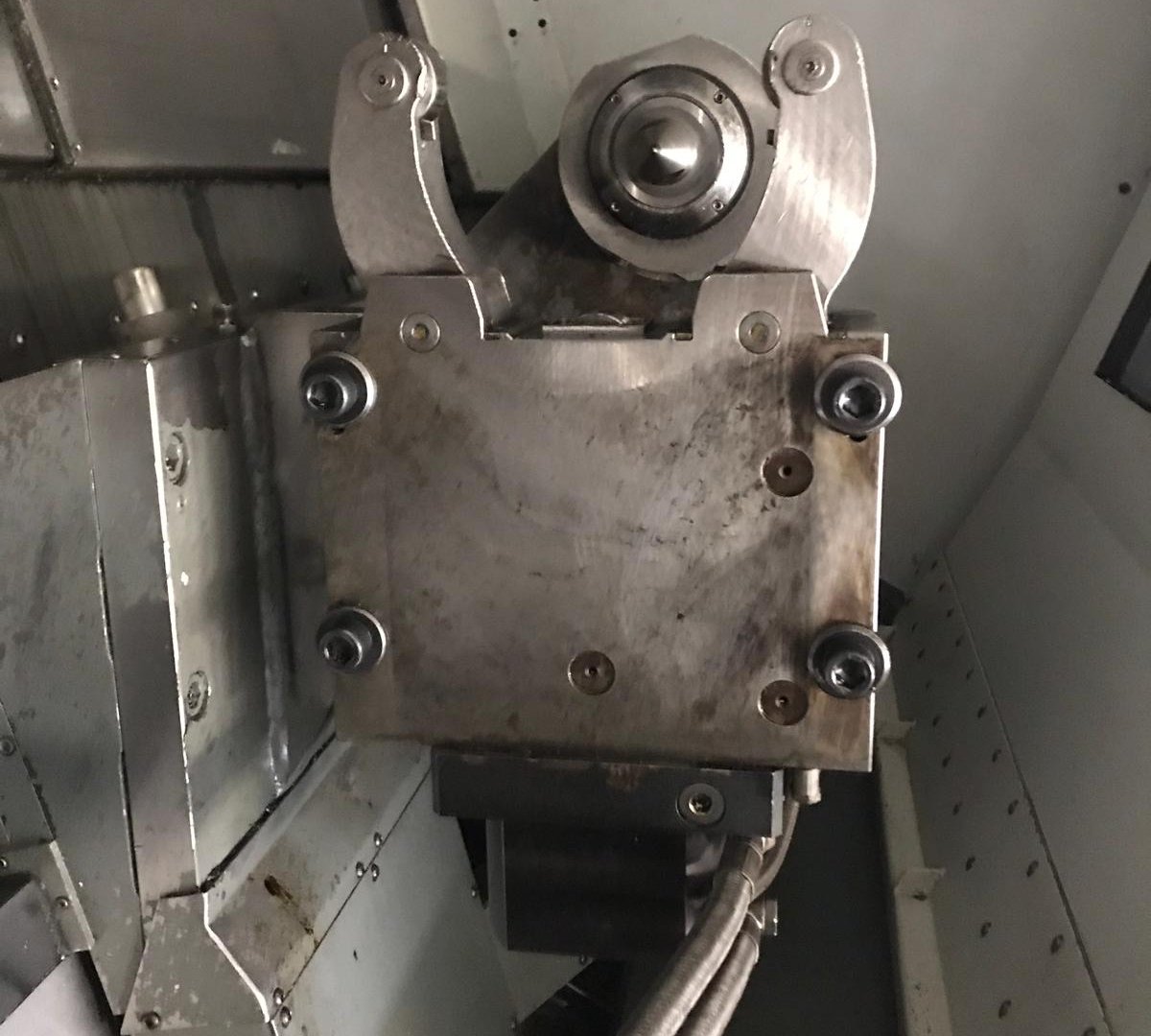

Tailstock: Yes
Automatic Quill stroke: 150 mm
Quill recording: MK 5

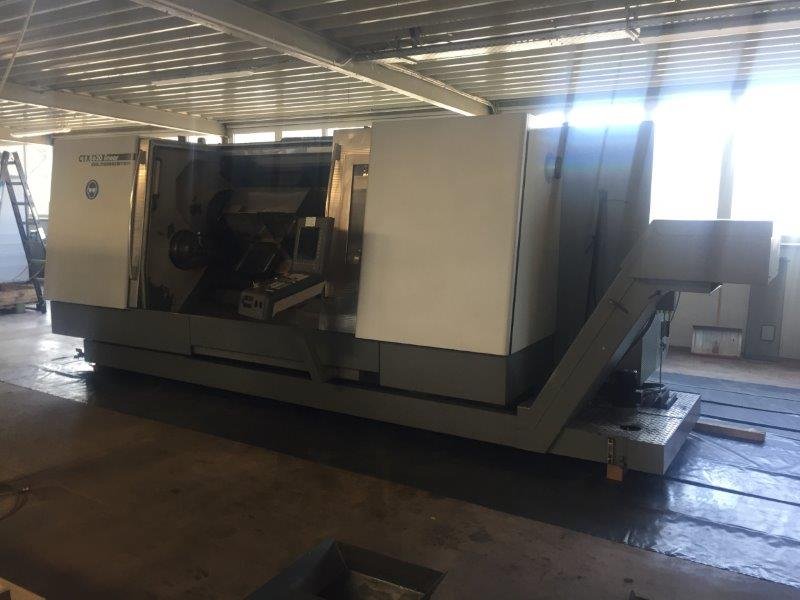

Chip conveyor: Yes
Dimensions: L x W x H 5500 x 2850 x 2275

-
