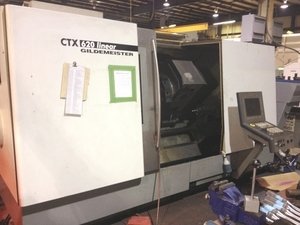

15" chuck Gildemeister Model CTX-620 Linear Multi Axis CNC Lathe (2006)
Specifications:
15" chuck Gildemeister Model CTX-620 Linear Multi Axis CNC Lathe (2006)
Max Swing: 31.5"
Max Swing Over X-Slide: 19.7"
Max Turning Length: 42.5"
Spindle Bore: 4.76"
Spindle Speeds: 2500 RPM
Main Motor Drive: 44 HP
Live Tool Motor: 1 HP
Live Tool Speeds: 3500 RPM
Utilization Time: 3172 Hours
Equipped With:
GE Fanuc 180iTB Control with Conversational Manual Guide, Live Tooling with Y-Axis, All Available Live Holders, Auto Door, Coolant Spray Gun, 2 x 2" Bar Holders, 2 x 1.5" Bar Holders, 2 x 1.25" Bar Holders, VDI 50 Hybrid Disk Turret, SMW Autoblok Chuck 500BHD-FL, Programmable Tailstock, Linear Guides 45 Deg Slant Bed, V4 Linear Lathe, All Hardware for Coolant Hook Up, Jaws and Screws, Manuals, Transformers
