turning diameter 210 mm
turning length 600 mm
control ELTROPILOT M
max. swing diameter 560 mm
max. swing diameter over bed 270 mm
spindle bore 62 mm
travel of compound slide-rest 610/175 mm
spindle turning speed - stepless 100 - 4000 U/min
feeds bis 10.000 mm/U

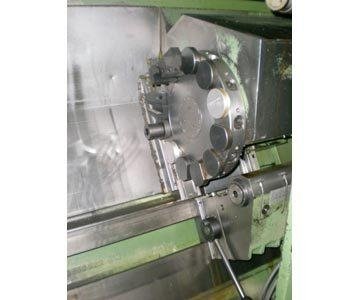

turret head 12-fach
total power requirement 25 kW
weight of the machine ca. 6 t
dimensions of the machine ca. 8,8 x 2,3 x 2 m
