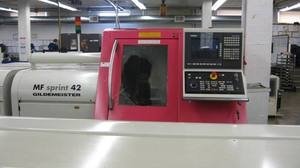

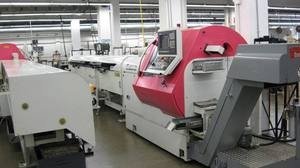

(2) Gildemeister MF Sprint 42, Fanuc 160iT, 1 5/8", 6300 RPM, Chip Conveyrs, Loaders

General Specifications As Per Brochure

CNC Control: Fanuc 160iT
Main Spindle:
Max. Bar Diameter: 42mm (1.65")
Max. Rotational Speed: 6,300 RPM
Performance (S2: 30/min S1): 7.5/5.5
Counter Spindle:
Max. Turning Diameter: 42mm (1.65")
Max. Rotational Speed: 6,300 RPM
Performance (S2: 30/min S1): 5.5/3.7
Axes:
Max. Rapid Traverse of Axes: 40 ipm
Max. Axis Accceleration: 10 m/s2
Traverse Path X1 (linear): 65mm (2.55")
Traverse Path Y1: 350mm (13.77")
Traverse Path Z1: 120mm (4.72")
Traverse Path X2: 265mm (10.43")
Traverse Path Y2: 326mm (12.83")
Traverse Path Z2: 320mm (12.59")
Tool Mount Slide 1:
Fixed Tools/ Driven Tools: 6 / 4
Tool Mount Slide 2:
Fixed Tools/ Driven Tools: 2
Fixed Tools:
For External Machining (Y2): 3
For Internal Machining (Y2): 4
Driven Tools (Y2): 4
Weight (approx.): 4,350 lbs

Equipped with (must be verified by buyer):
Bar Loaders
Chip Conveyors

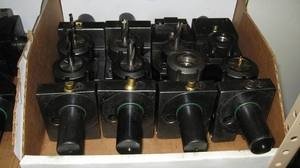

Misc. tooling

(2) machines offered as a pair.
1999 machine under power and in running condition
1998 machine has lower turret dissassembled, but turret is present in crate

4350 lbs
