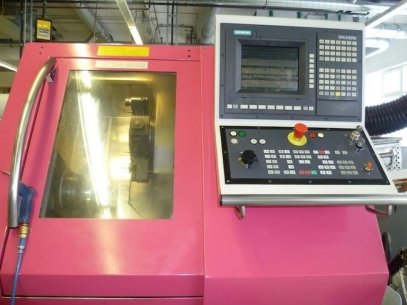

Year: 1998 IBN: 1999 Part overhauled in 2010 control: SINUMERIK 840C rod: 65 mm turning over bed: 240 mm slide travel plan x1, x2: 190 mm slide travel along z1, z2: 555 mm chuck: 200/160 mm turning length: 800 mm bar feeder: 3.00 m torque (40% / 100% duty cycle): 320/240 Nm Weight: 6,500 kg Spindle motor: 21 KW Speed: 40 min 4000 U /. Bar diameter: 65 mm Turret 1: 8-station turret with AGW 2: 8 stations with AGW tool shank diameter: 30 mm Approx. 64 000 under power equipment and accessories: Tool driving in two turrets, bar feed connector, chip conveyor, workpiece pick-up device, IRCO-bar loader, coolant processing, the main and counter spindle with C axis, hydraulic hollow chuck with collet chuck, NC-part device (360 x 1), parts conveyor
