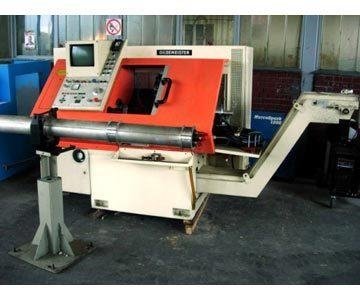

Swing over cross slide: 185 mm turning diameter over bed: 280 mm spindle bore 42 mm chuck diameter: 110 mm slide: Longitudinal travel (Z axis): 250 mm Cross travel (X axis): 160 mm gun carriage: No. 1 No. of positions turret 1: 16 tool holder diameter: 10 mm Spindle: Spindle speeds 120 H5: stepless from 30 rpm / min to 5000 rev / min spindle (mobile): spindle diameter: 42 mm Spindle stroke: 120 mm spindle taper: 3 MK Feeds: Variable length: min of 1 mm / up to 12000 mm / min plan: 12 m / min Connection:, from 1 mm / 12000 mm / min rapid traverse min 50 Hz 3x380 Volt Spindle motor: 7.5 kW Machine weight approx: 2600 kg Overall dimensions machine: Length: 2200 mm Width: 1700 mm Height: 1800 mm Various accessories: Coolant light LNS bar feed Werkstückentferner
