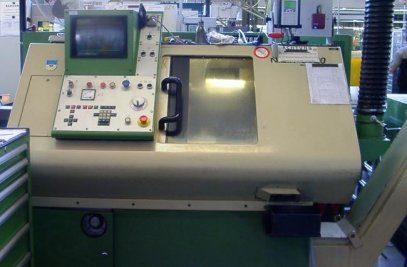

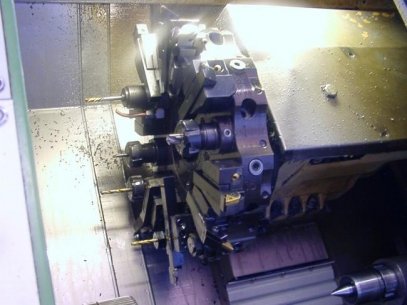

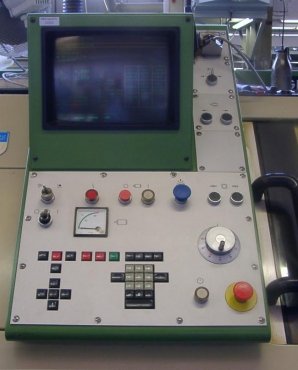

Lathe Manufacturer: Gildemeister Type: NEF CT20 control: Gildemeister EPL-2 Tool: VDI 20 Year: 1989 Hours: approx 64087h (March 2011) Accessories: - Collet chuck 173 E - bar loader FMB - mini turbo - chip conveyor - Tailstock - Tool holders, the machine is connected and can stream be viewed and inspected the work area Specifications Height: 240 mm max. Turning length: 250 mm max. Circulation Diameter: 280 mm max. Diameter rotating slide: 185 mm spindle spindle heads: flat faced, diameter 100 h5 spindle diameter: 70 mm max. torque: 50 Nm spindle bore: 50 mm max. Chuck diameter: 10 mm tool support system: disc turret Meisselqürschnitt: 16/16 number of slide: 1 Pinolhub: 160 mm Longitudinal travel: 250 Pinolenkegel Tailstock: Quill MK3: 50 mm space requirement: approx 2340 x1600 mm Weight: approx [...Technical data truncated]
