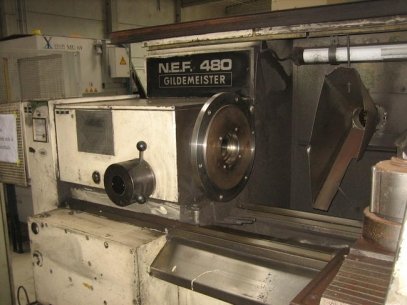

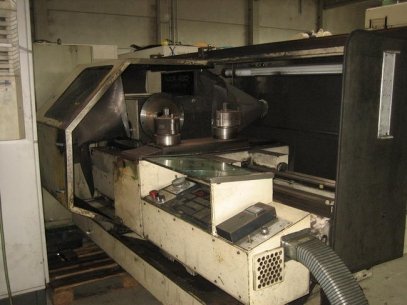

Manufacturer Gildemeister Type NEF 480 CNC control Fanuc mate L Year 19 981 Specifications Swing 480mm swing over the cross slide 200mm Cross travel 290mm Distance 1000/2000mm speed range 31.5 2240min increment 1.12 / 1.25 Over program selectable speeds 2 peak height on flat rail 240mm Width of bed 333mm spindle head size according to DIN 55 022 6 spindle diameter in front bearing 90mm spindle bore 56mm quill 80/MKS quill 160mm drive power 11 kW Max torque at the main spindle 1120mm machine net weight approx 2100/2600kg largest rapid in the longitudinal direction 6000mm/min largest rapid in the transverse direction 5000mm / min Note: machine without chuck without tailstock.
