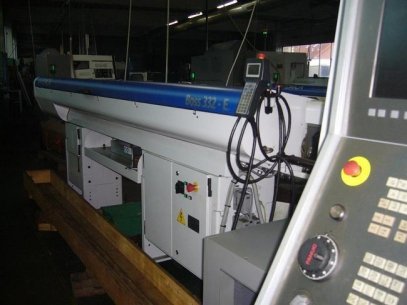

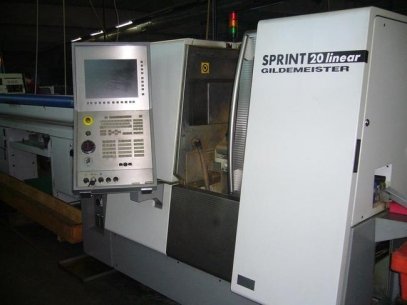

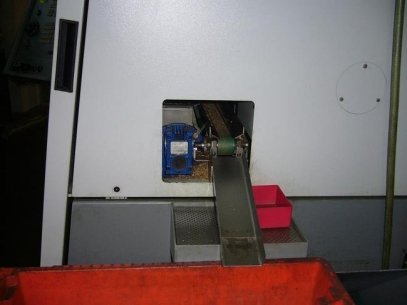

Economic and productive in the complete machining of small and large series 7-axis version Specifications: Max 6 + 2 axes bar diameter. mm 20 (25) Speed range 10.000Upm drive power kW 5.5 / 3.7 Rapid traverse of the axes m / min 40 m/s2 acceleration axis 10 stroke Z1-axis 80 mm radial travel X1 (linear) mm 50 mm 300 Stroke Z2-axis DMG SlimLinePanel with 15 "TFT screen driven tools Y-axis on the main spindle max Stangendurmesser 20 mm diameter movable spindle with integrated spindle motor that moves with a stroke of 80 mm on the Z1-axis, linear drives for maximum precision, performance and economy 6 + 2 axes, two Y-axes in the standard Integrated spindle drives with up to 10,000 min-1 for the main and counter spindle simultaneously Up to two power tools in use No unloading by unloading on the counter spindle linear tools disposed on the carriage 1 and the driven . economical processing tools in several axes simultaneously parallel time on the counter spindle can also be executed as an integrated spindle motor, the workpiece is machined, even with power tools accessories. IEMCA BOSS 332/32 e loader parts chip conveyor discharge Spindelspühlung by counter-spindle
