Extremely modern 8 (EIGHT) axis machine with linear movement - lightning speed (NO BALLSCREW) - in X1 axis. Powerful angular synchronized main spindle and subspindle. Fixed and Driven tools. Linear slides. Videos available, including an independent third party inspection report.
Machine is being offered together with CONTINENTALMS and INTRAMAQ so it might end earlier if sold elsewhere. We can provide you with more detailed technical and commercial information as per your requirements. Older machines this same model are offered at over 100,000 USD in different sites, this is an unique opportunity. You will be purchasing a DMG-Gildemeister lathe with high productivity.
Machine description (Refferential only - Must be verified by buyer before purchase/pickup):

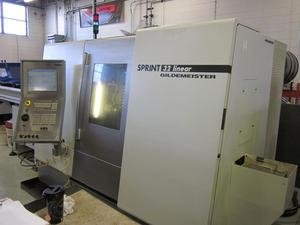

GILDEMEISTER
SPRINT 32 Linear CNC Automatic Lathe
Machine Specification
Basic Machine
1-. GILDEMEISTER SPRINT 32 LINEAR
8 axes version
CNC- automatic Lathe with FANUC control Base machine configuration:
-collet holder for main and pick up spindle
-5 position 16x16 toolholder for slide 1
-3 driven tools on slide 1 with spindles ESX16 -C-axis for mainspindle and counter-spindle -drive for rotating tools slide 2
-3 driven tools on slide Y2 with spindles ESX16
-4-pos.tool holder diam.32mm for slide 2-chip conveyor h=1100 mm with fluxmeter -pneum. ejector and unloading system with belt -pneum.cleaning system for counterspindle - collet
-Mechanical preparation for oil mist filter
-electr. and software preparation for bar loader
–angular synchronization between main and counter spindle
Additional included: Drill holder plate for slide 2 with: No. 2 cyl. Junctions diam. 32; No. 2 axial driven tools ESX 20 Max. 4000 U/Min.; No. 1 junction For polygonal milling unit excl. poi. disk code 55410
Additional included: Polygonal disk diam. 90 mm incl. shaft and 10 inserts
Lathe Spindle Liner
Additional (included) 4 live tools instead of 3 on slide Y2
Standard equipment included in base price: Multi-tap transformer for US & Canadian voltages Machine designed for 60Hz electric service
We strongly recommend that IEMCA Barfeeder is acquired with this machine to achieve high performance (Not included)
Specifications:
Technical Specifications for this machinery series:
Technical Data

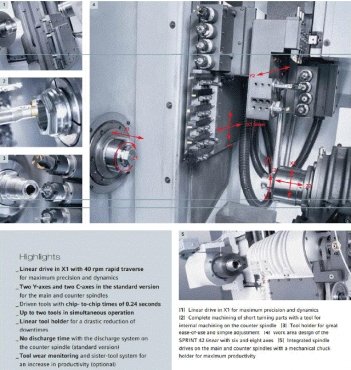

GILDEMEISTER SPRINT 32 LINEAR, 6 AND 8 AXES
Two spindles CNC lathe
Construction Characteristic
6+2 controlled axes with NC Fanuc 160i TB
Sliding headstock and pick up spindle with integrated spindle motors Linear drive for the X1 axis
Monolithic cast iron structure
Main spindle
Max bar diameter Inch 1.25
Max speed rpm 8000
Nominal Power Si % ED kW 5,5
Power 52 % ED kW 7,5
Counterspindle
Max bar diameter Inch 1.25
Max speed rpm 8000
Nominal Power Si % ED kW 317
Power S2 % ED kW 5,5
Slidel
Stroke Z1 (Spindle stock) mm 120
Stroke X1 (Linear drive) mm 50
Stroke Y1 MIT1 275
Rapid traverse m/min 40
Acceleration m/sec2 10
Feed force X1 (Linear drive) daN 120
Feed force Z1 daN 250
Feed force Y1 daN 250

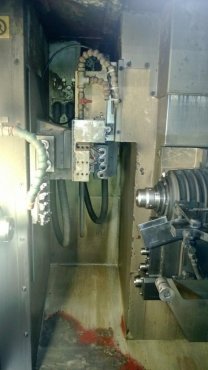

Linear tool holder slide I
Number of fixed tools No. 5
Fixed tools application Mr11 16X16
Number of driven tools (standard) No. 3
Driven tools application ESX16
Rpm of the driven tools rpm 6000 (3000)
Power of the driven tools kW 1,5
Slide2 (counterspindle)
Stroke X2 mm 245
Stroke Z2 Mrrl 320
Rapid traverse Z2 Wmin 40
Rapid traverseX2 M/min 25
Feed force X2 e Z2 daN 250
Linear tool holder slide 2:
Number of the fixed tools No. 4
Fixed tools application mm 032
Number of the driven tools No. 4
Driven tools application ESX20
Power of the driven tools kW 3,7
Linear tool holder slide Y2
Number of the fixed tools for external working No. 3 – 4 SPECIAL
Tool application for the external working film 16X16
Number of fixed tools for the internal working No. 4
Tool application for the internal working rfirn 0 32
Number of the driven tools No. 3
Driven tools application ESX16
Rpm of the driven tools rpm 6000 (3000)
Power of the driven tools kW 1,5
Electrical equipment
- Electrical cabinet according to EN 60204-1
- Power supply KVA 34
- Section of power supply cable mm2 5x16
- Operating voltage Volt 400
- Frequency Hz 50
- Main fuse A 63
- Voltage fluctuation +6%/-10%
- Environment temperature °C 10-45
- Humidity range % 10-94
- Control voltage V/DC 24
- Lighting voltage V/DC 24
- Nominal current A 49
IMPORTANT ADVICE:
The machine must be connected exclusively to the TN power line.
A transformer must be connected to every other power line that differs from the TN type. This transformer must be grounded to the secondary star winding.
In case the machine is connected to a differential switch, a differential type "B" adjusted to 500mA, 0,5 sec. is needed.
FANUC 160iTB CNC Control (Flat colour video 15”)
Coolant equipment (chip conveyor)
- coolant tank, capacity approx. I 680
- capacity of coolant pump max. l/min 120
- standard pressure bar 1
Safety and noise
- Machine guards with safety equipment according to EN 389/92
- Noise according DIN 45 635 / UNI 7712 max. dB (A) 75
Painting:
Machine outside light grey NOS 1502G
Splashguards satinad stainless steel
Control cabinet dark grey NCS 5502 G
ALL THE ABOVE ARE REFERENTIAL DESCRIPTIONS. MACHINE MUST BE INSPECTED PRIOR TO SALE. WE CAN PROVIDE THIRD PARTY INDEPENDENT REPORT AND VIDEOS. MAKE ALL YOUR QUESTIONS. Machine to be fully paid for (funds cleared) before pickup.
