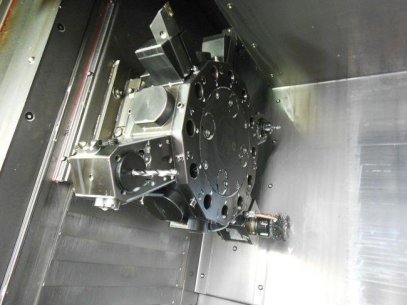

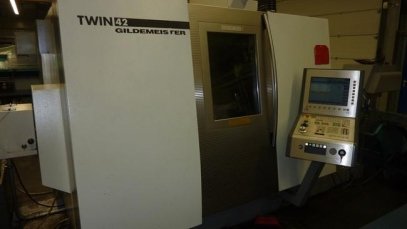

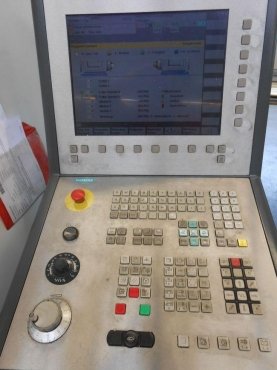

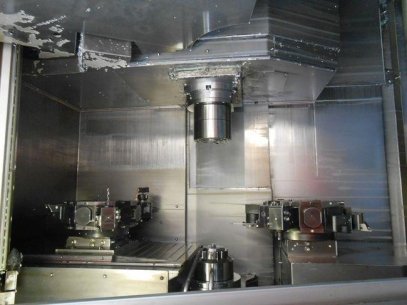

CNC - LATHE used Manufacturer: GILDEMEISTER Type: TWIN 42 (Rg1) Year: 06/2003 Control: CNC 3-D - Bahnsteürung SIEMENS SINUMERIK 840 D Condition: very good condition SPECIFICATIONS circulation 145 mm turning 100 mm spindle spacing 580mm chuck 140 mm spindle 1 (left) spindle head size 120 h 5 mm spindle bore 56 mm spindle in v. bearing 110 mm drive power AC (100% DF) 35 kW power AC (40% ED 25 kW Max torque. (40% duty cycle) 150 Nm speed range 35-7000 min-1 rpm C-axis 2.000 min-1 Torque C-axis (holding torque) 200 Nm spindle 2 (right) spindle head size 120 h 5 mm spindle bore 56 mm spindle in v. bearing 110 mm Power AC (100% ED) 38 kW power AC (. 40% duty cycle 25 kW Max torque (40% duty cycle) 150 mm, speed range up to 35 - min-1 7,000 min-1 rpm C-axis 2000 Torque C-axis (holding torque) 200 Nm carriage 1. / min tool holder 1 Planweg (x 1-axis) 220 mm Longitudinal travel (Z 1-axis) 320 mm Rapid XZ 30 m /. Number of tool stations 12 of which are driven 12 shaft (DIN 69880) 25 mm drive power (100/40% ) 2,1 / 3,8 kW max speed. 6.000 min-1 Rapid (x, z / y) 30/15 m / min slide 2 / tool carrier 2 Planweg (x 2-axis) 120 mm Longitudinal (z 2-axis min) 345 mm Rapid traverse X / Z 30 m / min. Number of tool stations 12 of which are driven 12 shaft (DIN 69880) 25 mm drive power (100/40%) 2,1 / 3,8 kW max speed. 6.000 min-1 rapid traverse 30 [...Technical data truncated]
