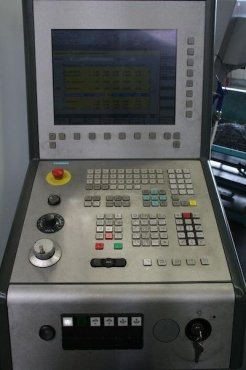

Year: 2003 Part overhauled in 2011 Control: CNC 3-D Bahnsteürung Siemens SINUMERIK 840 D Rotation diameter: 145 mm turning diameter: 100 mm spindle clearance: 580 mm chuck diameter: 140 mm Machine Weight: 5,500 kg space L x W x H: 3.9 x 2 , 4 mx 2.1 m rotary spindle 1 (left): Spindle head size: 120h 5 mm spindle bore 56 mm spindle in v. bearing: 110 mm Power AC (100% duty cycle) 35 kW output AC (40% duty cycle) 25 KW Torque max. (40% duty cycle) 150 Nm 7000 rpm speed range of 35 / min. C-axis rotation speed 2,000 rpm /. Torque C-axis (holding torque) 200 Nm spindle 2 (right) spindle head size: 120h 5 mm spindle bore 56 mm spindle in v. bearing: 110 mm Power AC (100%): 38 kW power AC (40% duty cycle) : 25 kW Max torque. (40% duty cycle): 150 mm max rpm range. 35 7000 r / min. C-axis speed: 2,000 rpm /. C-axis torque (holding torque): 200 Nm slide 1 / toolholder 1: Cross travel (x 1-axis): 220 mm Longitudinal travel (Z 1-axis): 30 m / min: 320 mm Rapid XZ. Number of tool stations: 12 of them driven 12 shaft (DIN 69880): 25 mm Power (100/40%): 2,1 / 3,8 kW max speed. : 6000 rpm /. Rapid traverse (x, z / y): 30/15 m / min. Slide 2 / tool carrier 2: Cross travel (x 2-axis): 120 mm Longitudinal (z 2-axis): 30 m / min: 345 mm Rapid traverse X / Z. Number of tool stations: 12 of them driven 12 shaft (DIN 69880): 25 mm Power (100/40 [...Technical data truncated]

-
