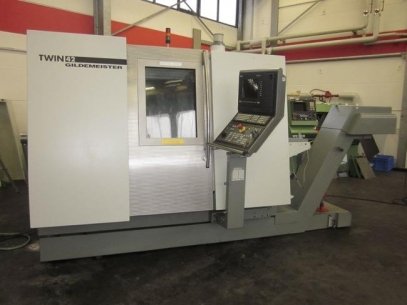

CNC Lathe Gildemeister Twin 42 Machine

Ready for operation

Turning diameter [mm] 100
Turning length [mm] 580
Spindle bore [mm] 46
set-up measurements LxWxH [mm] 4.500x2.300x2.000
X-[mm] 220
Z-[mm] 320
Weight 5.300
Control: Siemens 840 D

technical details:
main spindle
- spindle bore 56 mm
- hollow clamping cylinder 46 mm
- bar passage 42 mm
- drive power (100%DC) 38 kW
- torque (100%DC) 150 Nm
- c-axis rotational speed 2.000 rpm

counter spindle
- spindle bore 56 mm
- partial hollow clamping cylinder 46 x 555 mm
- bar passage 42 mm
- drive power (100%DC) 38 kW
- torque (100%DC) 150 Nm
- c-axis rotational speed 2.000 rpm
- longitudinal travel Z3-axis 380 mm

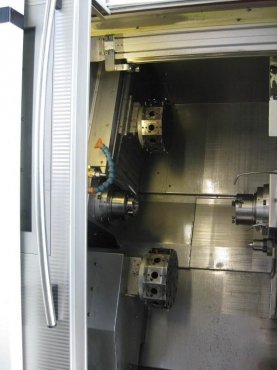

turret 1
- servo turret for 12 tools (VDI 30)
- all tools driven 6.000 rpm; 6kW
- vertical travel Y1-axis +/- 30 mm
- rapid traverse 30 m/min

turret 2
- servo turret for 12 tools (VDI 30)
- all tools driven 6.000 rpm; 6kW
- rapid traverse 30 m/min

tailstock
- tailstock MK 3, automatically
- sleeve stroke 230 mm

configuration / equipment:
work piece collection system (part gripper, conveyor)

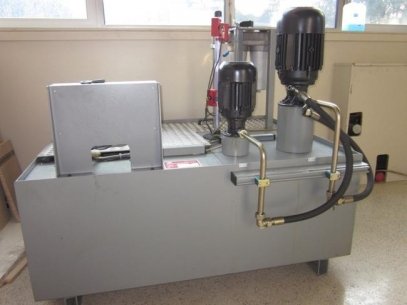

coolant unit, supply 650 l
chip conveyor

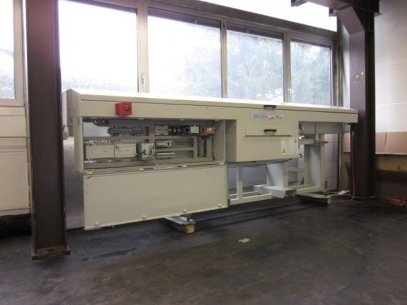

bar feeder 3m comp. Irco Simag 42.1R
collet chuck at main and 3-jaw-chuck at counter spindle

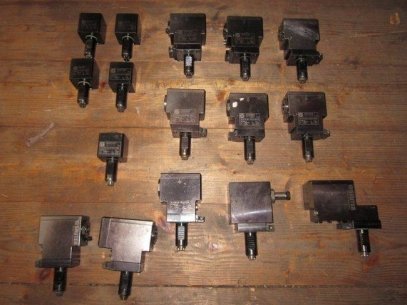

approx. 10 holders for driven tools
approx. 10 holders for fixed tools
5 guiding rails (20-40 mm)
