Swing diameter 670 mm
Swing diameter over saddle 500 mm
Turning diameter max. 340 mm
Turning diameter standard 205 mm
Turning length max. 591 mm
X / Z axis 270 / 600 mm
Chuck diameter 200 mm
Bar capacity 51 mm
Spindle bearing diameter 100 mm
Spindle nose A2-6
Power 11 / 15 kW
Speeds 4800 rpm
Torque 175 / 239 Nm

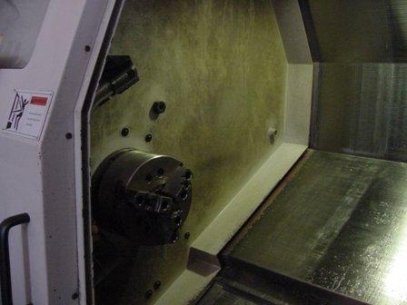

Sub spindle turning diameter 152 mm
Chuck diamter 160 mm
Spindle nose A2-5

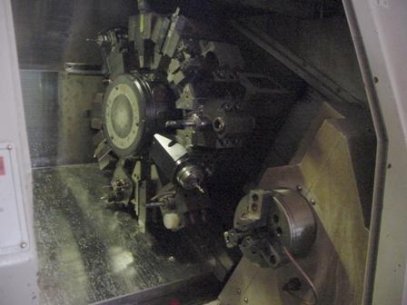

Turret 12 stations
Driven tool stations 12 stations
Machine weight 5200 kg
