Manufacturer: GORBREX

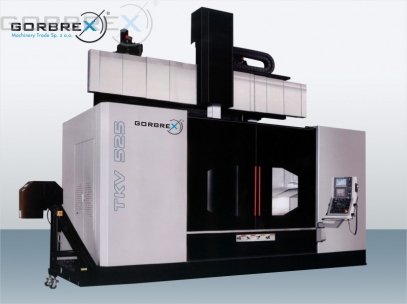

Model: TKV 525 CNC
New in: 2015
Control: SIEMENS SINUMERIK 828
Localisation: our Workshop Rudniki - Poland

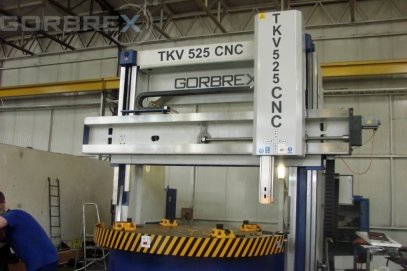

Machine fully modernized, modified of SEDIN 1525 with new electrical unit, lubrication unit, regrinder slideways, painted, replacement of all worn mechanical parts. Machine will be equipped with new CNC control SIEMENS SINUMERIK 828.
Delivery time: max. 3 - 4 months
Specifications:
Technical details
Number of columns: 2
Number of carriages: 1-opion 2
Type of carriage: Ram
Number of axis controlled: X/Z -option X1/Z1,C
Table diameter: 2250 mm
Max turning diameter: 2500 mm
Max. workpiece height: 1600 mm( with possibility of upgrading up to 2200 mm)
Max. table load: 16 000 kg
Table speeds range: 100 rpm
Number of table speeds ranges stepless: 3
Vertical travel in Z axis ( ram travel): 1200 mm
Horizontal carriage travel in X axis: 1400 mm
Working feeds range: 2-2000 mm/min
Rapid feeds: 10 m/min
Knife intersection: 63 x 40 mm
Vertical travel of trasversal beam: 1240 mm
Trasversal beam feeds: 360 mm/min
Main motor power: 45 kW
Installed power: 59 kW
Positioning accuracy: 0,01/1000 mm
Machine dimensions: 5200 x 6400 x 4900 mm
Machine weight: 35 500 kg
