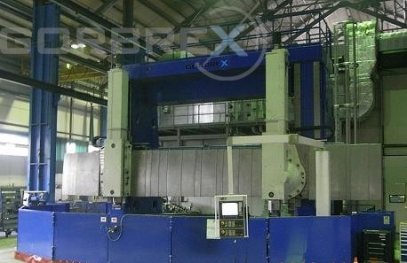

Manufacturer: GORBREX
Model: TKV 580 CNC
New in: 2015
Condition: excellent, like a new one, equipped with a CNC control SIEMENS SINUMERIK 828
Location: our warehouse Rudniki, Poland
Delivery time: ca. 12 months
Specifications:
Technical details
Max turning diameter: 8000 mm
Max turning height: 3200 mm
Max workpiece weight: 125 000 kg
Table diameter: 7100 mm
Max slider stroke: 2000 mm
Max travel of cross slide: 4275 mm
Table rotation range: 0,22 - 20,1 r / min
Slide feed range: 0,0352 - 285 mm/min
Rapid slide feed range: 2500 mm/min
Feeds crossbeam: 300 mm/min
Dimensions: 8615 x 17600 x 9800 mm
Machine weight with electrics: 258 000 kg
Weight without electrical equipment: 247 300 kg
