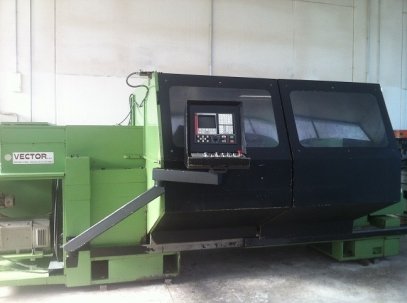

Type: horizontal lathe CN
Code: 35AU300115
Brand: Graziano
Model: Sag 24
Year: na
Height of centers on the bench: 500 mm
Distance between centers: 2000 mm
Diameter rotating on natural gap: 1070 mm
Diameter rotating on the slide: 642 mm
Spindle bore diameter: 114 mm
Automatic gear change: 2
Diameter of tailstock sleeve: 120 mm
Thrust tailstock sleeve: 2950-19500 N
Tailstock locking / Steering: hydraulic / manual
X axis travel: 630 mm
Rapid feed rate axes X / Z: 8000-6000 / 8000-9000 mm / min
Dimensions (lxlxh): 7.625x3.400x2.000 mm

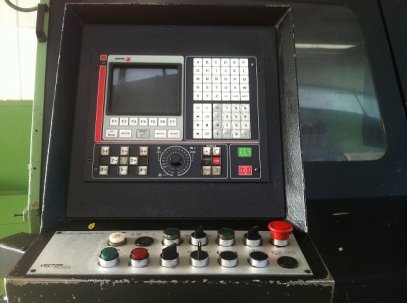

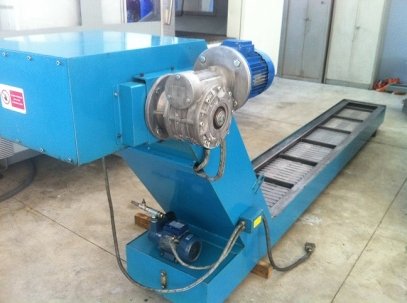

Notes: Chip conveyor, NC Fagor
