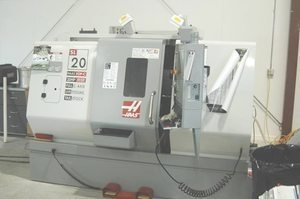

2006 Haas SL-20t [ Live Tooling]
CNC Turning Center
Specifications:
Control Haas
Swing Over Front Apron 20"
Swing Over Cross Slide 9.5"
X-Axis Travel 8.45"
Z-Axis Travel 20"
Rapid Traverse Rates 710 IPM
Max Bar Capacity 2.5"
Dist. Between Centers 24"
Max Turning Dia 10"
Max Turning Length 20"
Spindle Speeds 4000 RPM
Spindle Torque 300 @ 700 RPM
Spindle Motor 20 HP
Spindle Bore 2"
Turret Stations 12
Equipped With:,(*must be verified by buyer):
Live Tooling
C Axis Spindle Movement
Fully Programmable Tailstock
Tool Presetter
1 MB Expandable Prog. Mem.
Rigid Tapping
High Intensity Lighting
USB Port Interface
RS 232 Port Interface
Gear Driven Live Milling
8" Hydraulic Chuck
Collet Chuck
Parts Catcher
Chip Auger
Barfeed Interface for Haas
Spindle Orientation
Visual Quick Code Program
VDI 12 Station Hybrid Turrent
3.5" Floppy Disk Drive
(2) Live Tool Holders
All Manuals
Machine Weight 9,000 Lbs
Machine Dimensions 124"L x 74"W x 70"H
