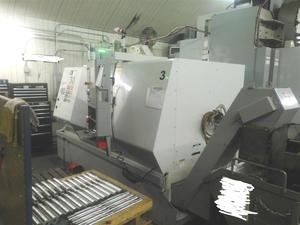

10" Hydraulic Chuck
1 MB Program Memory
Programmable Tailstock
Quick Code Programming
Side Exit Chip Conveyor
3.5" Floppy Disk Drive
Tool Pre Setter
Rigid Tapping
High Intensity Lighting
All Available Tooling
All Available Manuals
Specifications:
REMANUFACTURED WALDRICH SIEGEN WSIIb 95/16 - 4000 CNC ROLL GRINDER
Serial Number: 12241 Originally built: 1965 Retrofit: 2011
Specifications:
Maximum diameter of rolls to be ground with
Wheel of 700 mm diameter 35 ½”
Wheel of 600 mm diameter 40”
Rated distance between centers 157”
Maximum distance between centers 175”
Maximum weight of work piece 5 tons
Wheelhead
Size of grinding wheel 28” x 3” x 12”
Grinding wheel speeds 0 – 1350 variable
Grinding wheel motor 50 hp Asynchronous Fanuc
Grinding wheel drive Fanuc AC
Workhead
Workhead speeds 0 – 80rpm variable
Workhead horsepower 30 hp Asynchronous Fanuc
Workhead drive Fanuc AC
Taper in Workhead #6 Morse Taper
Infeed
Wheelhead Infeed motor Fanuc AC Digital Servo, 3.8 Kw
Total amount of slide travel 17 ¾”
Infeed increments, programmable .0000 10” - .004”
Maximum infeed rate (Rapid) 30 ipm
Grinding Carriage
Traverse Motor Fanuc AC digital servo, 7.3 Kw
Traverse Speeds 0 – 120 ipm
