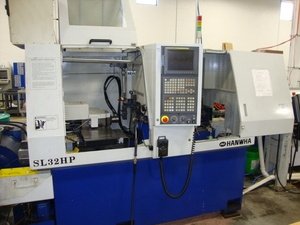

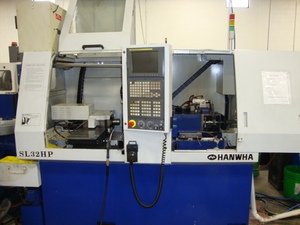

1. (Used) Hanwha CNC Swiss Turning Center
Model #: SL-32 HP
Year: 2001 (Put in Service 2005)

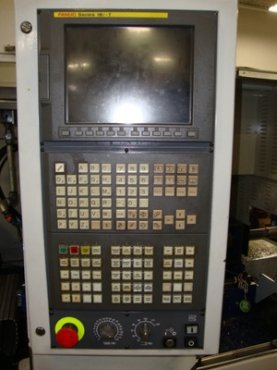

Control: Fanuc 18iT CNC
Specifications:
Number of controlled Axes..... 7 (X1, Y, Z1, C1, X2, Z2, C2)
Max Turning Diameter............ 1 1/4"
Main Spindle Stroke............... 8.67"
Main Spindle Speeds.............. 200-8,000 RPM
Sub Spindle Speeds................ 200-8,000 RPM
Tool Positions: (18) Total
-Turning Tools................... (5) Gang
-Cross Live Tools.............. (4) Live
-Y-axis ID Tool Block....... (3) Pos.
-Front End Face Tools....... (2) Live
-Back End Face Tools....... (2) Fixed, (2) Live
Live Tool RPM ..................... 200- 4,000 RPM
Equipped With:

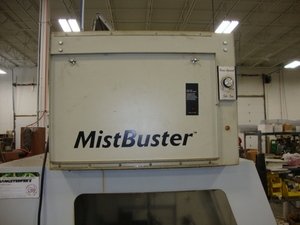

Mist Buster Mist Collector
LNS Turbo Chip Conveyor
Pneumatic Part Ejection & Detectin for Front Ejection
Broken Cut Off Tool Detection
Full C-axis on Main & Back Spindle
