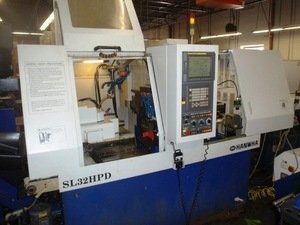

Hanwha SL32HPD Swiss Style Turning Center #1689

#1689 Hanwha SL32HPD Swiss Style Turning Center

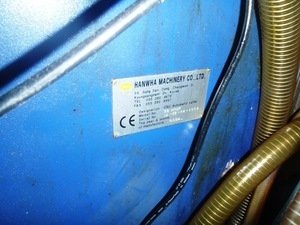

S/N: SL-32-b4-1059
Model: SL32HPD
Mfg. 2005

SPECIFICATIONS:
Machine Capacity:
Max. Bar Capacity Round: 1.250”
Max Bar Capacity Hex: 1.062”
Max. Bar Capacity for the Sub-Spindle: 1.250”
Tapping Capacity on the Main Spindle: 0.312”
Front Ejection from the Sub-Spindle: 2.750”
Rear Ejection from the Sub-Spindle: 11.000”
Drilling Capacity on the Sub-Spindle: 0.393”
Tapping Capacity on the Sub-Spindle: 0.312”
Drilling Capacity on the Sub-Spindle: 0.393”
Tapping Capacity on the Cross Tap: 0.250”

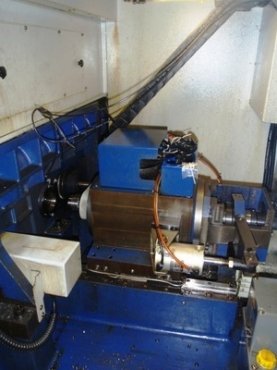

Main Spindle:
Spindle Speed Range: 300-8,000 RPM
AC Spindle Drive: 7.5 HP
C-Axis Control Minimum Programmable Angle: 0.001 Deg.
C- Axis Locking Gear: Every 1.0 Deg.
Z-Axis Stroke: 8.260”
Z-Axis Rapid Traverse: 1,200 IPM
Sub-Spindle:
Spindle Speed Range: 300-8,000 RPM
AC Spindle Drive: 5 HP
C-Axis Control Minimum Programmable Angle: 0.001 Deg.
C-Axis Locking Gear: Every 1.0 Deg.
Z-Axis Stroke: 8.260”
Z-Axis Rapid Traverse: 1,200 IPM
Independent 4 Position Powered Drilling Station:
Drilling Speed Range: 200-4,000 RPM
AC Spindle Drive: 1.5HP
Z-Axis Stroke: 8.260”
Z-Axis Rapid Traverse: 1,200 IPM

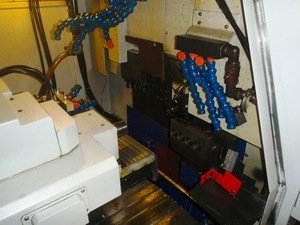

Tool Positions:
O.D. Tool Positions: 5
O.D. Tool Shank: 0.625” Sq
Cross = Mill / Drill Stations: 4
Main I.D. Tool Positions: 9
Sub-Spindle I.D. Tool Positions (2 Powered): 4
Coolant/Lubrication Systems:
Coolant Pump Motor (Main Spindle): .6 HP
Coolant Pump Motor (Sub Spindle): .6 HP
Coolant Tank Capacity: 55 Gallons
Way Lube Tank Capacity: 0.48 Gallons
Machine Dimensions:
Width x Length x Height (door Closed): 65” x 96” x 70”
Weight: 8,5000 lbs.
General Specification:
Voltage: 3 Phase 200V – 220V
Power Required: 30KVA
Compressed Air: 80PSI

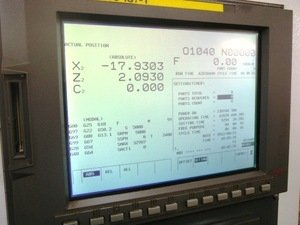

Machine Hours:
Power On: 23,874
Operating: 4,283
Cutting: 925
Location: Spencer MASS

EQUIPPED WITH:

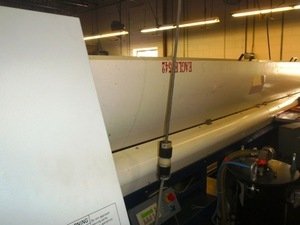

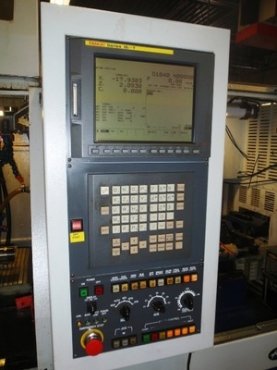

Fanuc 16iTB System * MTA Eagle 545 12' Hydrodynamic Bar Feeder; Including Telescopic Nose,
Synchronization Clutch System, and Remnant Retract * Turbo Chip Conveyor * Royal Filter Mist Collector * (4) Stationary Drill Holders * Offset Option of 0.00001" min Input * JBS Compensating Guide Bushing System * Nine Cutting Axes (X1, Y, Z1, C1, X2, Z2, C2, X3, Z3) * 1-Degree Indexing Main & Sub Spindle for Heavy Milling * Independent 2-Axis, 4 Station Front Drilling Positions 2 are Powered * Full Stroke Synchronous Rotary Guide Bushing Units (S&M TD32S) * Full C-Axis Control, Both Main & Sub Spindles * Parts Conveyor with Part Collection Tray * Parts Separator * Air Blow Unit Controlled by M-Code * Pneumatic Part Ejection & Detection for Front Ejection * Long Parts Ejection From Back Spindle (Shaft Work) * Broken Cut Off Tool Detection * Centralized Automatic Lubrication System w/Level Detector * Coolant Flow Detector for Safe Unmanned Operation * Leveling Bolts and Pads * One Complete Set of Manuals * Tooling Package (Included) * 5 Turning Stations (5/8" Square Shank) * 4 Cross Drilling/Slotting Stations (ER20) * 9 Front ID Post (2 Power Driven 2 Stationary) (ER-20) * 4 Back ID Post (2 Power Driven 2 Stationary) (ER-20) * Safety Door Interlock

Machine Condition: Very Good
Machine Location: Spencer, MA

65" x 96" x 70"

85,000 lbs.
