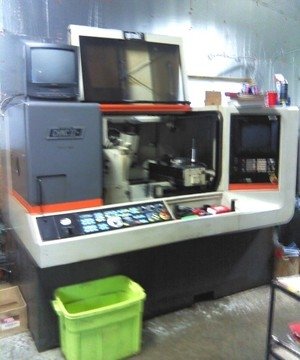

16C Collet Capability, Pneumatic Singe Tube 12 ft. Barfeed

Chuck Size 16C
Max Diameter Bar Capacity 1.63"
Max Swing Over Bed 14"
Max Turning Diameter 8"
Distance Between Centers 12.5"
Spindle Motor 10 / 7.4 HP
Spindle Speed 50 - 5000 RPM
Spindle Bore 1.87"
Spindle Nose A2-5
Tools 8
Rapid Traverse Rates (X & Z) 400 IPM
X-Axis Travel 4.5"
Z-Axis Travel 12"
Turret Index (Single Step / Full) 1 / 2 Seconds
Machine Dimensions (L x W x H) 92.75" x 70" x 64.5"
Machine Weight 6000 lbs.


FEATURES:
GE FANUC 10T CNC CONTROL
14" Color CRT
16C Collet Capability
Pneumatic Single Tube 12 ft. Barfeed

93 x 70 x 65

6000
