Fanuc 21T Control

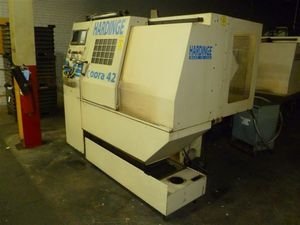

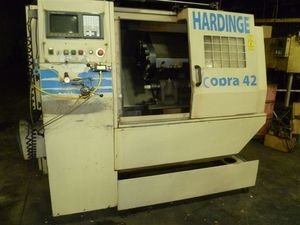

1997 Hardinge Cobra 42 CNC Lathe

Specifications:
Max Swing Over Bed.................................................... 21"
Max OD Turning Capacity w/Standard Tooling............. 8.25"
Max Machinable Center Distance................................. 14"
Cross Travel (X-Axis).................................................... 7.75"
Longitudinal Travel (Z-Axis).......................................... 14"
Rapid Traverse Rate (X-Axis)........................................ 400 IPM
Rapid Traverse Rate (Z-Axis)........................................ 630 IPM
Number of Turrets......................................................... 1
Tool Positions................................................................ 12
Spindle Bore.................................................................. 1.625"
Bar Capacity.................................................................. 1.625"
Spindle Speed Range (1 RPM Increments).................... 50-5000 RPM
Spindle Horsepower....................................................... 7.5 HP
Approximate Machine Dimensions.................................. 86" x 67" x 70” Tall
Approximate Machine Weight......................................... 6,000 LBS
Electrics........................................................................... 220/3/60

Equipped with:
Fanuc 21-T Control
Coolant System

86" x 67" x 70” Tall

6,000 lbs
