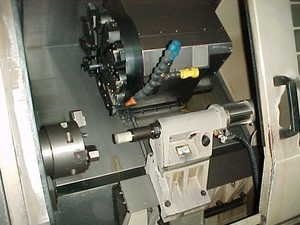

Fanuc 21T Control, Tailstock.

1999 Hardinge Cobra 42 CNC Lathe

Specifications:
Max Swing Over Bed......................................................21"
Max OD Turning Capacity w/Standard Tooling.............. 8.25"
Max Machinable Center Distance..................................14"
Cross Travel (X-Axis).....................................................7.75"
Longitudinal Travel (Z-Axis)...........................................14"
Rapid Traverse Rate (X-Axis).........................................400 IPM
Rapid Traverse Rate (Z-Axis).........................................630 IPM
Number of Turrets.........................................................1
Tool Positions.................................................................12
Spindle Bore...................................................................1.625"
Bar Capacity...................................................................1.625"
Spindle Speed Range (1 RPM Increments).................... 50-5000 RPM
Spindle Horsepower...................................................... 7.5 HP
Approximate Machine Dimensions................................. 86" x 67" x 70” Tall
Approximate Machine Weight........................................ 6,000 LBS
Electrics......................................................................... 220/3/60

Equipped with:
Fanuc 21-T Control
Coolant System
Tailstock

86" x 67" x 70" Tall

6,000 lbs
